In AI data servers, capacitors are mainly used for power management, filtering, and energy storage to ensure stability and efficiency. High-performance capacitors can reduce power supply noise, improve power quality, support fast charging and discharging, and meet the needs of AI computing for high bandwidth and low latency. In the future, as the demand for higher energy efficiency and smaller components increases, capacitors will develop in the direction of high frequency, high temperature, low ESR (equivalent series resistance), and longer life. The application of new materials and design technologies will further enhance the performance and reliability of capacitors in AI data servers.
Server Motherboard
Server power supply ACDC/DCDC
Storage SSD/Storage Control
switch
Gateway Device

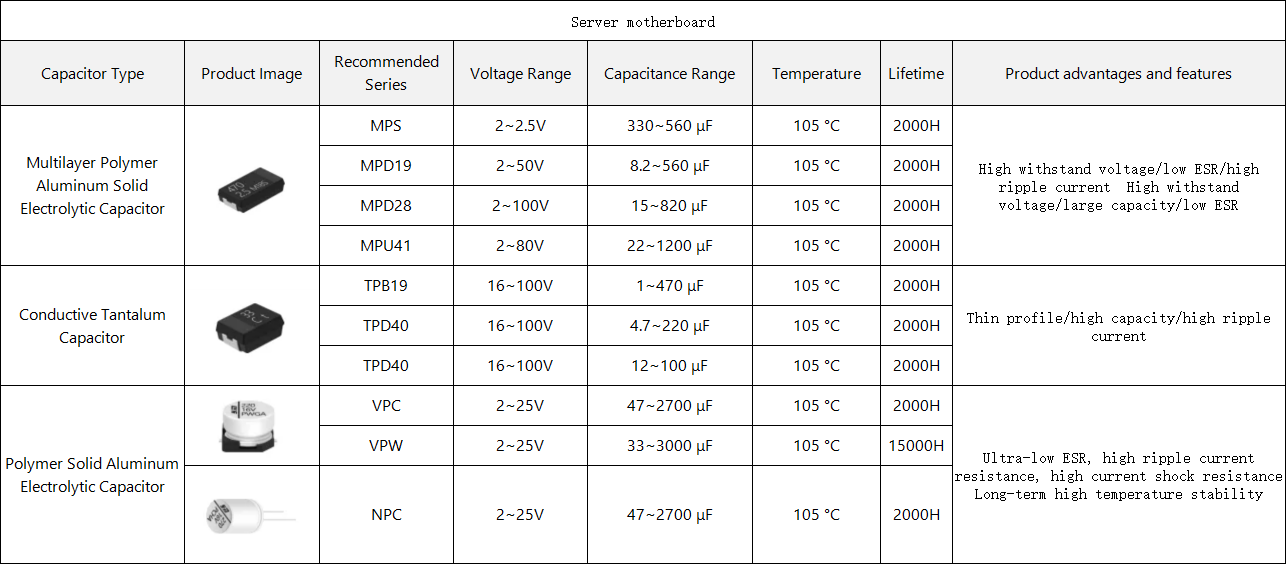

Server Motherboard
Application Terminal | Capacitor Type | Product Advantages | Series | Heat resistance and life | Capacitor voltage range required by application | Recommended specifications (voltage, capacity, size, ESR) | |||||||
Rated voltage (surge voltage) | Nominal capacity | Dimension D*L | Tan 120HZ | ESR mΩ | Rated ripple current | LC μA |
Products No. | ||||||
Server Motherboard | Multilayer Polymer Aluminum Solid Electrolytic Capacitor | Ultra-low ESR, high ripple current resistance | MPS | 105℃ 2000H | 2V~2.5V | 2.5 | 470 | 7.3*4.3*1.9 | 0.06 | 3 | 10200 | 235 | MPS471M0ED19003R |
High withstand voltage Low ESR High ripple current resistance |
MPD19 | 105℃ 2000H | 2V~50V | 2 | 330 | 7.3*4.3*1.9 | 0.06 | 6 | 7500 | 66 | MPD331M0DD19006R | ||
2.5 | 470 | 0.06 | 4.5 | 8500 | 118 | MPD471M0ED194R5R | |||||||
4 | 150 | 0.06 | 18 | 4600 | 60 | MPD151M0JD19018R | |||||||
6.3 | 220 | 0.06 | 12 | 5600 | 139 | MPD221M0LD19012R | |||||||
16 | 68 | 0.06 | 25 | 3800 | 109 | MPD680M1CD19025R | |||||||
16 | 100 | 0.06 | 20 | 4200 | 160 | MPD101M1CD19040R | |||||||
High withstand voltage Large capacity Low ESR |
MPD28 | 105℃ 2000H | 2V~80V | 4 | 470 | 7.3*4.3*2.8 | 0.06 | 18 | 4600 | 188 | MPD471M0JD19018R | ||
16 | 150 | 0.06 | 15 | 5100 | 240 | MPD151M1CD28015R | |||||||
20 | 100 | 0.06 | 40 | 3200 | 200 | MPD101M1ED28040R | |||||||
High withstand voltage Large capacity Low ESR |
MPU41 | 105℃ 2000H | 2V~80V | 2.5 | 1000 | 7.2*6.1*4.1 | 0.06 | 9 | 6300 | 250 | MPU102M0EU41009R | ||
Server Power | Multilayer Polymer Aluminum Solid Electrolytic Capacitor | High withstand voltage Low ESR High ripple current resistance |
MPD19 | 105℃ 2000H | 2V-50V | 25 | 47 | 7.3*4.3*1.9 | 0.06 | 40 | 3200 | 118 | MPD470M1ED19040R |
High withstand voltage Large capacity Low ESR |
MPD28 | 105℃ 2000H | 2V-80V | 10 | 220 | 7.3*4.3*2.8 | 0.06 | 40 | 3200 | 220 | MPD221M1AD28040R | ||
50 | 15 | 0.06 | 40 | 3200 | 75 | MPD150M1HD28040R | |||||||
Motherboard-DC/DC | Conductive Tantalum Capacitor | Miniaturization High reliability High ripple current |
TPB19 | 105℃ 2000H | 16V~100V | 16 | 47 | 3.5*2.8*1.9 | 0.10 | 70 | 1100 | 75.2 | TPB470M1CB19070RN |
25 | 22 | 3.5*2.8*1.9 | 0.10 | 100 | 900 | 55 | TPB220M1EB19100RN | ||||||
Thin profile High capacity High stability |
TPD19 | 105℃ 2000H | 16V~100V | 16 | 100 | 7.3*4.3*1.9 | 0.10 | 100 | 1400 | 160 | TPD101M1CD19100RN | ||
Ultra-large capacity High stability Ultra-high withstand voltage 100V max |
TPD40 | 105℃ 2000H | 16V~100V | 16 | 220 | 7.3*4.3*4.0 | 0.10 | 100 | 1900 | 352 | TPD221M1CD40100RN | ||
25 | 100 | 7.3*4.3*4.0 | 0.10 | 100 | 1900 | 250 | TPD101M1ED40100RN | ||||||
Server Power | Conductive Tantalum Capacitor | Ultra-large capacity High stability Ultra-high withstand voltage 100V max |
TPD40 | 105℃ 2000H | 16V~100V | 35 | 100 | 7.3*4.3*4.0 | 0.10 | 100 | 1900 | 350 | TPD101M1VD40100RN |
50 | 68 | 7.3*4.3*4.0 | 0.10 | 100 | 1900 | 340 | TPD680M1HD40100RN | ||||||
63 | 33 | 7.3*4.3*4.0 | 0.10 | 100 | 1900 | 207.9 | TPD330M1JD40100RN | ||||||
Motherboard-DC/DC | Solid state capacitors | 105℃2000H product Ultra-low ESR High ripple current resistance High current impact resistance Long-term high temperature stability Surface mount type |
NPC | 105℃ 2000H | 2V~25V | 2.5 | 1000 | 8×8 | 0.08 | 7 | 6100 | 500 | NPCD0800E102MJTM |
105℃ 2000H | 2V~25V | 2.5 | 1200 | 8×8 | 0.08 | 7 | 6100 | 600 | NPCD0800E122MJTM | ||||
105℃ 2000H | 2V~25V | 2.5 | 560 | 6.3×9 | 0.08 | 7 | 5600 | 300 | NPCC0900E561MJTM | ||||
105℃ 2000H | 2V~25V | 2.5 | 560 | 6.3×5.7 | 0.08 | 10 | 3500 | 300 | NPCC0570E561MJTM | ||||
105℃ 2000H | 2V~25V | 6.3 | 1500 | 8×11 | 0.09 | 7 | 6150 | 1890 | NPCD1100J152MJTM | ||||
105℃ 2000H | 2V~25V | 6.3 | 330 | 6.3×9 | 0.08 | 8 | 5250 | 416 | NPCC0900J331MJTM | ||||
105℃ 2000H | 2V~25V | 6.3 | 330 | 6.3×5.7 | 0.08 | 18 | 2800 | 416 | NPCC0570J331MJTM | ||||
105℃ 2000H | 2V~25V | 6.3 | 680 | 8×8 | 0.08 | 8 | 5600 | 857 | NPCD0800J681MJTM | ||||
105℃ 2000H | 2V~25V | 16 | 100 | 6.3×5.7 | 0.08 | 30 | 2100 | 320 | NPCC0571C101MJTM | ||||
105℃ 2000H | 2V~25V | 16 | 270 | 6.3×9 | 0.08 | 12 | 4450 | 864 | NPCC0901C271MJTM | ||||
105℃ 2000H | 2V~25V | 16 | 270 | 6.3×7 | 0.08 | 15 | 3500 | 864 | NPCC0701C271MJTM | ||||
Motherboard-DC/DC | SMD solid capacitors | 105℃2000H product Ultra-low ESR High ripple current resistance High current impact resistance Long-term high temperature stability Surface mount type |
VPC | 105℃ 2000H | 2V~25V | 2.5 | 1000 | 8×9 | 0.08 | 7 | 6100 | 500 | VPCD0900E102MVTM |
105℃ 2000H | 2V~25V | 2.5 | 1200 | 8×9 | 0.08 | 7 | 6100 | 600 | VPCD0900E122MVTM | ||||
105℃ 2000H | 2V~25V | 2.5 | 560 | 6.3×9.5 | 0.08 | 7 | 5600 | 500 | VPCC0950E561MVTM | ||||
105℃ 2000H | 2V~25V | 2.5 | 560 | 6.3×5.8 | 0.08 | 10 | 3500 | 500 | VPCC0580E561MVTM | ||||
105℃ 2000H | 2V~25V | 6.3 | 1500 | 8×12.5 | 0.09 | 7 | 6150 | 1890 | VPCD1250J152MVTM | ||||
105℃ 2000H | 2V~25V | 6.3 | 330 | 6.3×9.5 | 0.08 | 5 | 5250 | 500 | VPCC0950J331MVTM | ||||
105℃ 2000H | 2V~25V | 6.3 | 330 | 6.3×5.8 | 0.08 | 18 | 2800 | 500 | VPCC0580J331MVTM | ||||
105℃ 2000H | 2V~25V | 6.3 | 680 | 8×9 | 0.08 | 8 | 5600 | 857 | VPCD0900J681MVTM | ||||
105℃ 2000H | 2V~25V | 16 | 100 | 6.3×5.8 | 0.08 | 30 | 2100 | 500 | VPCC0581C101MVTM | ||||
105℃ 2000H | 2V~25V | 16 | 270 | 6.3×9.5 | 0.08 | 12 | 4450 | 864 | VPCC0951C271MVTM | ||||
105℃ 2000H | 2V~25V | 16 | 270 | 6.3×7.7 | 0.08 | 15 | 3500 | 864 | VPCC0771C271MVTM | ||||
Motherboard-DC/DC | Solid state capacitors | 105℃15000H product Ultra-long life Low ESR Resistant to large ripple current Resistant to large current shock Long-term high temperature stability |
VPW | 105℃ 15000H |
2V~25V | 2.5 | 1000 | 8×9 | 0.12 | 7 | 6100 | 500 | VPWD0900E102MVTM |
105℃ 15000H |
2V~25V | 2.5 | 1200 | 8×9 | 0.12 | 7 | 6100 | 600 | VPWD0900E122MVTM | ||||
105℃ 15000H |
2V~25V | 2.5 | 560 | 6.3×6.1 | 0.12 | 15 | 3200 | 500 | VPWC0610E561MVTM | ||||
105℃ 15000H |
2V~25V | 2.5 | 820 | 6.3×8.5 | 0.12 | 13 | 3600 | 500 | VPWC0850E821MVTM | ||||
105℃ 15000H |
2V~25V | 6.3 | 1000 | 8×9 | 0.12 | 8 | 5700 | 1260 | VPWD0900J102MVTM | ||||
105℃ 15000H |
2V~25V | 6.3 | 330 | 6.3×6.1 | 0.12 | 16 | 3100 | 500 | VPWC0610J331MVTM | ||||
105℃ 15000H |
2V~25V | 6.3 | 680 | 8×9 | 0.12 | 8 | 5700 | 857 | VPWD0900J681MVTM | ||||
105℃ 15000H |
2V~25V | 16 | 100 | 6.3×6.1 | 0.12 | 30 | 2200 | 500 | VPWC0611C101MVTM |

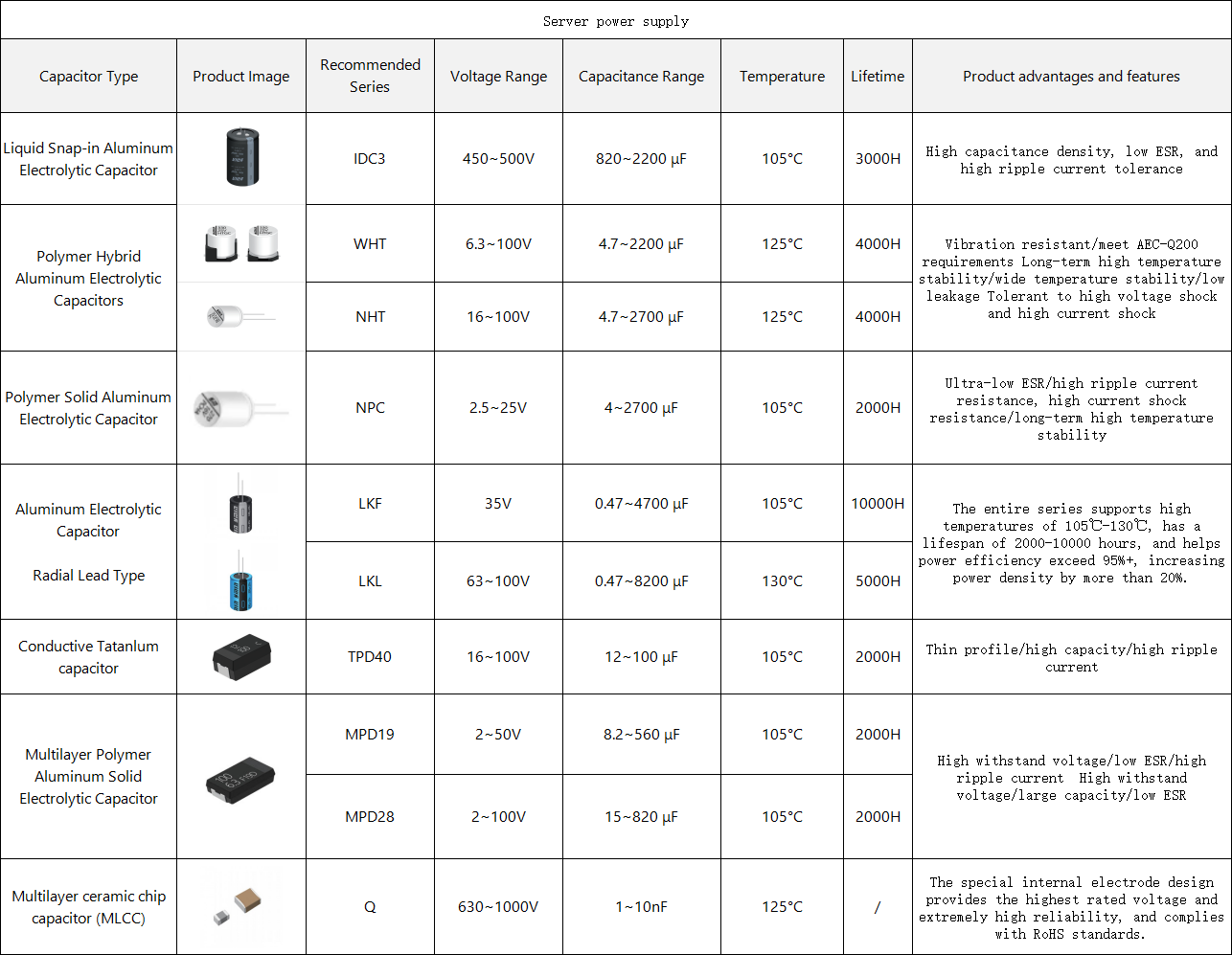

Server power supply ACDC/DCDC
Application Terminal | Capacitor Type | Products Advantages | Series | Heat resistance and life | Volt Range | Recommended specifications (voltage, capacity, size, ESR) | |||||||
Rated voltage (surge voltage) | Capacitance (μF) | Dimension D*L | Tan 120HZ | ESR mΩ | Rated Ripple Current | LC μA | Products No. | ||||||
Server Power Supply | Snap-in type Aluminum Electrolytic capacitor | High capacitance density, low ESR, high ripple resistance | CW3 | 105℃ 3000H | 100V-450V | 100(125) | 4700 | 35*50 | 0.2 | 57 | 4100 | 940 | CW32R472MNNAS07S2 |
450(500) | 820 | 25*70 | 0.15 | 314 | 2180 | 940 | CW32W821MNNYG01S2 | ||||||
450(500) | 1200 | 30*70 | 0.15 | 215 | 2750 | 940 | CW32W122MNNXG01S2 | ||||||
450(500) | 1400 | 30*80 | 0.15 | 184 | 3200 | 940 | CW32W142MNNXG03S2 | ||||||
Server Power Supply | Radial Lead type Conductive Polymer Aluminum Solid Electrolytic Capacitors | 105℃2000H product Ultra-low ESR Resistant to large ripple current Resistant to large current shock Long-term high temperature stability |
NPC | 105℃ 2000H | 2V~25V | 16 | 470 | 8×11 | 0.08 | 10 | 5230 | 1504 | NPCD1101C471MJTM |
105℃ 2000H | 2V~25V | 16 | 470 | 6.3×9 | 0.08 | 12 | 4450 | 1504 | NPCC0901C471MJTM | ||||
105℃ 2000H | 2V~25V | 16 | 470 | 8×8 | 0.08 | 12 | 4700 | 1504 | NPCD0801C471MJTM | ||||
105℃ 2000H | 2V~25V | 20 | 330 | 8×8 | 0.08 | 15 | 4000 | 1320 | NPCD0801D331MJTM | ||||
105℃ 2000H | 2V~25V | 16 | 1500 | 10×12 | 0.09 | 8 | 6150 | 4800 | NPCE1201C152MJTM | ||||
105℃ 2000H | 2V~25V | 16 | 2200 | 10×18 | 0.10 | 8 | 7900 | 7040 | NPCE1801C222MJTM | ||||
Battery/power supply | Radial Lead type Conductive Polymer Hybrid Aluminum Electrolytic Capacitors | 125℃ 4000H product Vibration resistance Meet AEC-Q200 requirements Long-term high temperature stability, Wide temperature stability Resistant to high voltage shock and high current shock Low leakage current |
NHT | 125℃ 4000H |
16V~100V | 63 | 120 | 10*10 | 0.10 | 30 | 1400 | 75.6 | NHTE1001J121MJCG |
125℃ 4000H |
16V~100V | 63 | 270 | 10×16 | 0.10 | 12 | 3500 | 170.1 | NHTE1601J271MJCG | ||||
125℃ 4000H |
16V~100V | 80 | 47 | 10×10 | 0.10 | 35 | 1200 | 37.6 | NHTE1001K470MJCG | ||||
125℃ 4000H |
16V~100V | 63 | 150 | 10×13 | 0.10 | 20 | 2200 | 94.5 | NHTE1201J151MJCG | ||||
125℃ 4000H |
16V~100V | 63 | 180 | 10×13 | 0.12 | 20 | 2200 | 113.4 | NHTE1301J181MJCG | ||||
125℃ 4000H |
16V~100V | 63 | 220 | 10×17 | 0.12 | 12 | 3500 | 138.6 | NHTE1601J221MJCG | ||||
125℃ 4000H |
16V~100V | 80 | 270 | 12.5×19 | 0.12 | 30 | 3500 | 216 | NHTL1801K271MJCG | ||||
125℃ 4000H |
16V~100V | 80 | 47 | 10×10.5 | 0.10 | 35 | 1200 | 37.6 | NHTE1001K470MJCG |
Storage SSD/Storage Control
Application Terminal | capacitor Type | Products Advantages | Series | Heat resistance and life | Volt Range | Recommended specifications (voltage, capacity, size, ESR) | |||||||
Rated voltage (surge voltage) | Capacitance μF | Dimension D*L | Tan 120HZ | ESR mΩ | Rated ripple current | LC μA | Products No. | ||||||
Storage SSD/Storage Control | Multilayer Polymer Aluminum Solid Electrolytic Capacitor | High temperature, long life Ultra-low ESR High ripple current Compliant with AEC-Q200 Long-term high temperature stability |
MPX | 125℃ 3000H | 2V~6.3V | 2.5 | 390 | 7.3*4.3*1.9 | 0.06 | 4.5 | 8500 | 98 | MPD391M0ED194R5R |
2 | 470 | 0.06 | 4.5 | 8500 | 94 | MPD471M0DD194R5R | |||||||
High withstand voltage Low ESR High ripple current resistance |
MPD19 | 105℃ 2000H | 2V-50V | 6.3 | 220 | 7.3*4.3*1.9 | 0.06 | 12 | 5600 | 132 | MPD221M0LD19012R | ||
35 | 33 | 0.06 | 40 | 3200 | 116 | MPD330M1VD19040R | |||||||
High withstand voltage Large capacity Low ESR |
MPD28 | 105℃ 2000H | 2V~80V | 6.3 | 330 | 7.3*4.3*2.8 | 0.06 | 18 | 4600 | 208 | MPD331M0LD28018R | ||
存储-SSD | 高分子钽电解电容器 | Ultra -thin and high capacity | TPD15 | 105℃ 2000H | 35V~63V | 35 | 47 | 7.3*4.3*1.5 | 0.10 | 90 | 1400 | 164.5 | TPD470M1VD15090RN |
Thin profile High capacity High stability |
TPD19 | 105℃ 2000H | 16V~100V | 35 | 47 | 7.3*4.3*1.9 | 0.10 | 90 | 1450 | 164.5 | TPD470M1VD19090RN | ||
35 | 68 | 7.3*4.3*1.9 | 0.10 | 90 | 1450 | 238 | TPD680M1VD19090RN | ||||||
存储-SSD | 固液混合电容 | Vibration resistant Low leakage current Meet AEC-Q200 requirements Long-term high temperature stability, Wide temperature capacity stability Withstands 300,000 charge and discharge cycles |
NGY | 105℃ 10000H |
35V | 35 | 100 | 5×11 | 0.12 | 60 | 1250 | 35 | NGYB1101V101KJCG |
105℃ 10000H |
35V | 35 | 100 | 8×8 | 0.12 | 30 | 2100 | 35 | NGYD0801V101KJCG | ||||
NGY | 105℃ 10000H |
35V | 35 | 180 | 5×15 | 0.12 | 40 | 1700 | 63 | NGYB1501V181KJCG | |||
NHT | 125℃ 4000H |
35V | 35 | 1800 | 12.5×20 | 0.12 | 20 | 3100 | 630 | NHTL2001V182KJCG |

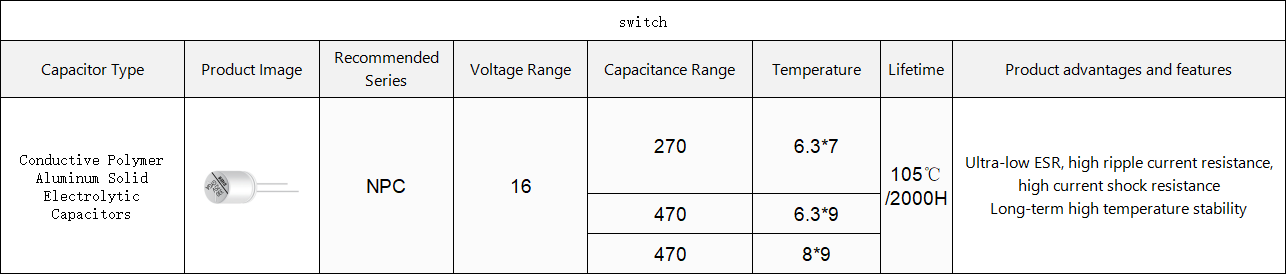

switch
Application Terminal | Capacitor Type | Products Advantages | Series | Heat resistance and life | Volt range | Recommended specifications (voltage, capacity, size, ESR) | |||||||
Rated voltage (surge voltage) | Capacitance (μF) | Dimesnion D*L | Tan 120HZ | ESR(mΩ) | Rated Ripple Current | LC(μA) | Products No. | ||||||
Switch | Multilayer Polymer Aluminum Solid Electrolytic Capacitor | Ultra-low ESR, high ripple current resistance | MPS | 105℃ 2000H | 2V~2.5V | 2.5 | 470 | 7.3*4.3*1.9 | 0.06 | 3 | 10200 | 235 | MPS471M0ED19003R |
High withstand voltage Low ESR High ripple current resistance |
MPD19 | 105℃ 2000H | 2V~50V | 2 | 330 | 7.3*4.3*1.9 | 0.06 | 6 | 7500 | 66 | MPD331M0DD19006R | ||
2.5 | 330 | 0.06 | 4.5 | 8500 | 83 | MPD331M0ED194R5R | |||||||
2.5 | 470 | 0.06 | 4.5 | 8500 | 118 | MPD471M0ED194R5R | |||||||
6.3 | 100 | 0.06 | 15 | 5100 | 63 | MPD101M0LD19015R | |||||||
6.3 | 220 | 0.06 | 9 | 6300 | 139 | MPD221M0LD19009R | |||||||
10 | 100 | 0.06 | 15 | 5100 | 100 | MPD101M1AD19015R | |||||||
16 | 100 | 0.06 | 40 | 3200 | 160 | MPD101M1CD19040R | |||||||
High withstand voltage Large capacity Low ESR |
MPD28 | 105℃ 2000H | 2V~80V | 6.3 | 330 | 7.3*4.3*2.8 | 0.06 | 9 | 6300 | 208 | MPD331M0LD28009R | ||
20 | 100 | 0.06 | 40 | 3200 | 200 | MPD101M1DD28040R | |||||||
25 | 100 | 0.06 | 40 | 3200 | 250 | MPD101M1ED28040R | |||||||
Switch | Radial Lead type Conductive Polymer Aluminum Solid Electrolytic Capacitors | 105℃2000H product Ultra-low ESR Resistant to large ripple current Resistant to large current shock Long-term high temperature stability |
NPC | 105℃ 2000H | 2V~25V | 16 | 270 | 6.3×7 | 0.08 | 15 | 3500 | 864 | NPCC0701C271MJTM |
105℃ 2000H | 2V~25V | 16 | 470 | 6.3×9 | 0.08 | 12 | 4450 | 1504 | NPCC0901C471MJTM | ||||
NPC | 105℃ 2000H | 2V~25V | 16 | 470 | 8×9 | 0.08 | 10 | 5000 | 1504 | NPCD0901C471MJTM |

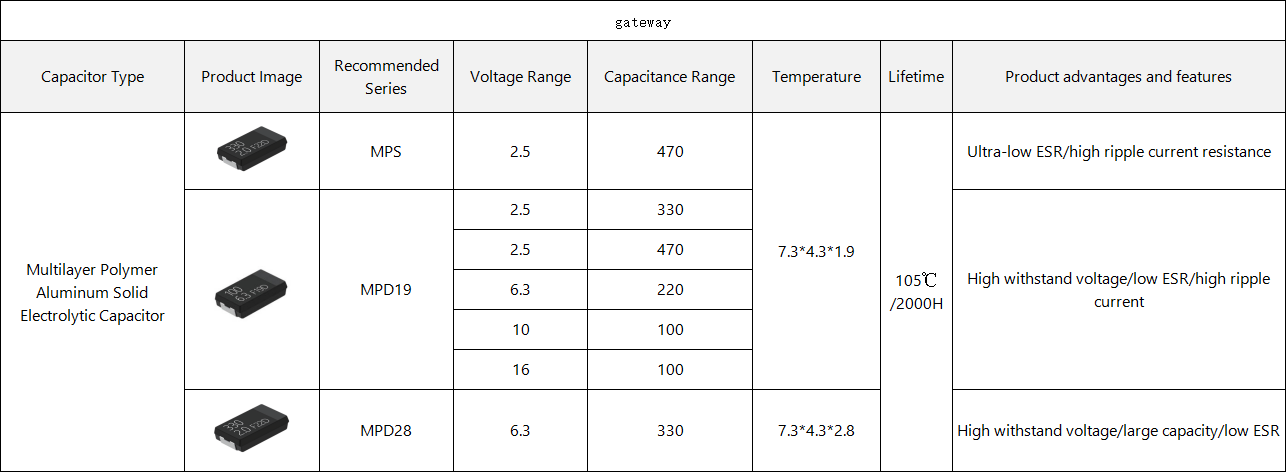

Gateway Device
Application Terminal | Capacitor Type | Products Advantages | Series | Heat resistance and life | Rated Voltage | Recommended specifications (voltage, capacity, size, ESR) | |||||||
Rated voltage (surge voltage) | Capacitance μF | Dimension D*L | Tan 120HZ | ESR (mΩ) | Rated Ripple Current | LC(μA) | Products No. | ||||||
Gateway | Multilayer Polymer Aluminum Solid Electrolytic Capacitor | Ultra-low ESR, high ripple current resistance | MPS | 105℃ 2000H | 2V~2.5V | 2.5 | 470 | 7.3*4.3*1.9 | 0.06 | 3 | 10200 | 235 | MPS471M0ED19003R |
High withstand voltage Low ESR High ripple current resistance |
MPD19 | 105℃ 2000H | 2V~50V | 2.5 | 330 | 7.3*4.3*1.9 | 0.06 | 4.5 | 8500 | 83 | MPD331M0ED194R5R | ||
2.5 | 470 | 0.06 | 4.5 | 8500 | 118 | MPD471M0ED194R5R | |||||||
6.3 | 220 | 0.06 | 9 | 6300 | 139 | MPD221M0LD19009R | |||||||
10 | 100 | 0.06 | 15 | 5100 | 100 | MPD101M1AD19015R | |||||||
16 | 100 | 0.06 | 40 | 3200 | 160 | MPD101M1CD19040R | |||||||
High withstand voltage Large capacity Low ESR |
MPD28 | 105℃ 2000H | 2V~80V | 6.3 | 330 | 7.3*4.3*2.8 | 0.06 | 9 | 6300 | 208 | MPD331M0LD28009R |
