Short Description:

Conductive Polymer Hybrid Aluminum Electrolytic Capacitors
SMD Type

♦Low ESR, high allowable ripple current, high reliability
♦ Guaranteed for 10000 hours at 105℃
♦Can meet vibration resistance requirements
♦Surface mount type high temperature lead-free reflow soldering products
♦Complies with AEC-Q200 and has responded to the RoHS directive


Product Detail

list of products number

Product Tags

Main Technical Parameters

project

characteristic

range of working temperature

-55~+105℃

Rated working voltage

16-80V

capacity range

6.8 ~ 470uF 120Hz 20℃

Capacity tolerance

±20% (120Hz 20℃)

loss tangent

120Hz 20℃ below the value in the list of standard products

Leakage current※

Below 0.01 CV(uA), charge at rated voltage for 2 minutes, 20℃

Equivalent Series Resistance

100kHz 20°C below the value in the list of standard products

Temperature Characteristics

Z(-25℃)/Z(+20℃)≤2.0 ; Z(-55℃)/Z(+20℃)≤2.5 (100kHz)





Durability

At a temperature of 105°C, apply a rated voltage including a rated ripple current for a specified period of time, and then place it at 20°C for 16 hours before testing. The

product should meet the following requirements

Capacitance change rate

±30% of initial value

Equivalent Series Resistance (ESR)

≤200% of the initial specification value

loss tangent

≤200% of the initial specification value

leakage current

≤Initial specification value





high temperature storage

Store at 105°C for 1000 hours, place it at room temperature for 16 hours before testing, the test temperature is 20°C±2°C, the product should meet the following

requirements

Capacitance change rate

±30% of initial value

Equivalent Series Resistance (ESR)

≤200% of the initial specification value

loss tangent

≤200% of the initial specification value

leakage current

≤Initial specification value

Note: Products stored at high temperature must undergo voltage treatment.



High temperature and humidity

After applying the rated voltage for 1000 hours at 85°C and 85%R.H humidity, and placing it at 20°C for 16 hours, the product should meet the following requirements

Capacitance change rate

±30% of initial value

Equivalent Series Resistance (ESR)

≤200% of the initial specification value

loss tangent

≤200% of the initial specification value

leakage current

≤Initial specification value

※When in doubt about the leakage current value, please place the product at 105°C and apply the rated working voltage for 2 hours, and then conduct the leakage current test after cooling down to 20°C.

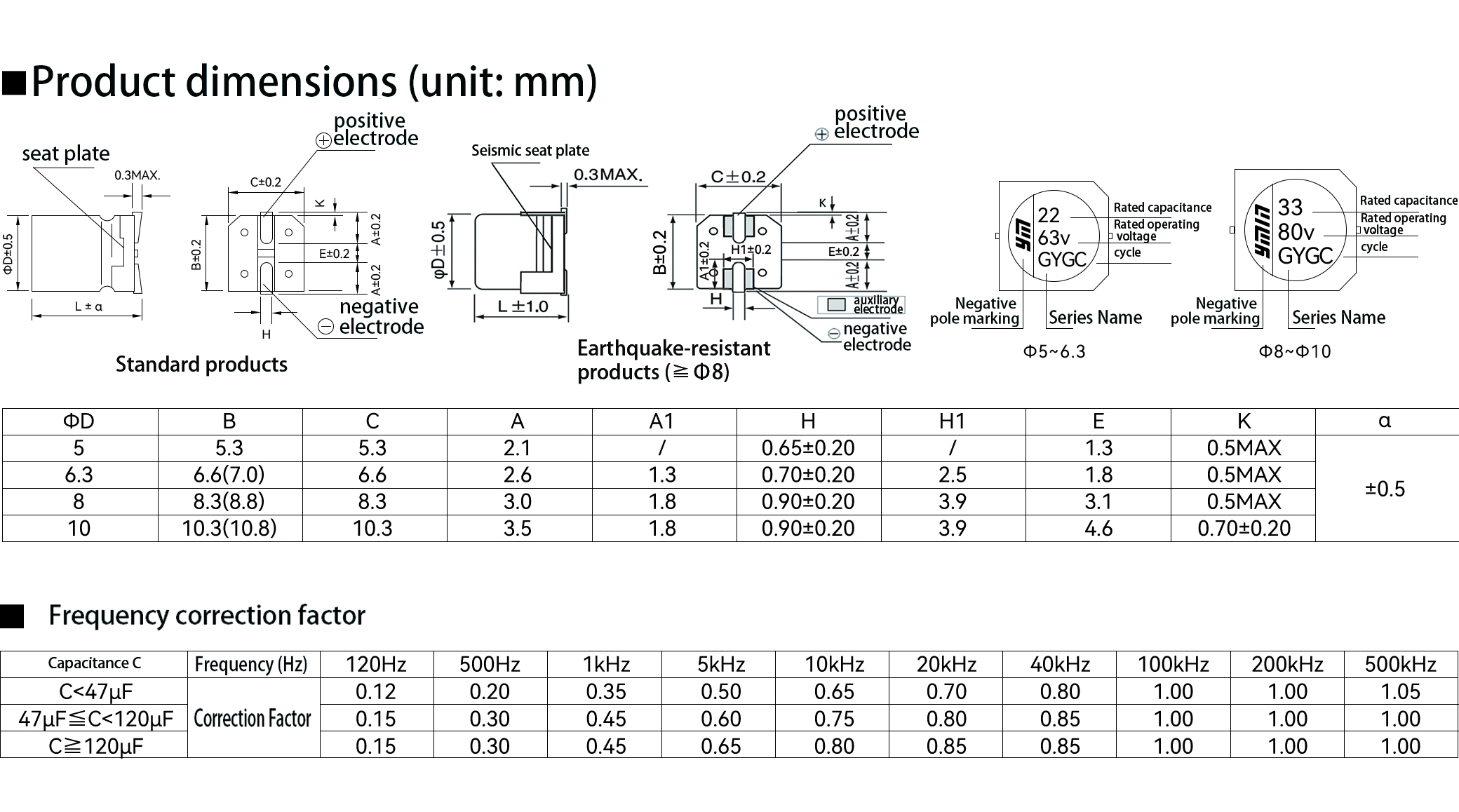

Product Dimensional Drawing

Product Dimensions (Unit:mm)

ΦD B C A H E K a
6.3 6.6 6.6 2.6 0.70±0.20 1.8 0.5MAX

±0.5
8 8.3(8.8) 8.3 3 0.90±0.20 3.1 0.5MAX
10 10.3(10.8) 10.3 3.5 0.90±0.20 4.6 0.70±0.20

Ripple Current Frequency Correction Coefficient

frequency correction factor

Capacitance C

Frequency (Hz)

 120Hz 500Hz 1kHz

5kHz

 10kHz 20kHz 40kHz 100kHz 200kHz 500kHz
C<47uF

correction factor

 0.12 0.2 0.35

0.5

 0.65 0.7 0.8 1 1 1.05
47uF≤C<120uF 0.15 0.3 0.45

0.6

 0.75 0.8 0.85 1 1 1
C≥120uF 0.15 0.3 0.45

0.65

 0.8 0.85 0.85 1 1 1

Polymer Hybrid Aluminum Electrolytic Capacitor (PHAEC) VHX is a new type of capacitor, which combines aluminum electrolytic capacitors and organic electrolytic capacitors, so that it has the advantages of both. In addition, PHAEC also has unique excellent performance in the design, manufacture and application of capacitors. The following are the main application areas of PHAEC:

1. Communication field PHAEC has the characteristics of high capacity and low resistance, so it has a wide range of applications in the field of communication. For example, it is widely used in devices such as mobile phones, computers and network infrastructure. In these devices, PHAEC can provide a stable power supply, resist voltage fluctuations and electromagnetic noise, so as to ensure the normal operation of the equipment.

2. Power field PHAEC is excellent in power management, so it also has many applications in the power field. For example, in the fields of high-voltage power transmission and grid regulation, PHAEC can help achieve more efficient energy management, reduce energy waste, and improve energy utilization efficiency.

3. Automotive electronics In recent years, with the rapid development of automotive electronics technology, capacitors have also become one of the important components of automotive electronics. The application of PHAEC in automotive electronics is mainly reflected in intelligent driving, on-board electronics and Internet of Vehicles. It can not only provide a stable power supply for electronic equipment, but also resist various sudden electromagnetic interference.

4. Industrial automation Industrial automation is another important field of application for PHAEC. In automation equipment, PHAEC can be used to help realize the precise control and data processing of the control system and ensure the stable operation of the equipment. Its high capacity and long life can also provide more reliable energy storage and backup power for equipment.

In short, polymer hybrid aluminum electrolytic capacitors have broad application prospects, and there will be more technological innovations and application explorations in more fields in the future with the help of the characteristics and advantages of PHAEC.

  • Previous:
  • Next:
    • Products Number Temperature (℃) Rated Voltage (Vdc) Capacitance (μF) Diameter(mm) Length(mm) Leakage Current(μA) ESR/Impedance [Ωmax] Life (hrs) Products Certification
    VGYC0771J220MVCG -55~105 63 22 6.3 7.7 13.86 0.08 10000 AEC-Q200
    VGYD1051J220MVCG -55~105 63 22 8 10.5 13.86 0.04 10000 AEC-Q200
    VGYD1051J330MVCG -55~105 63 33 8 10.5 20.79 0.04 10000 AEC-Q200
    VGYD1051J470MVCG -55~105 63 47 8 10.5 29.61 0.04 10000 AEC-Q200
    VGYE1051J560MVCG -55~105 63 56 10 10.5 35.28 0.03 10000 AEC-Q200
    VGYD0771E181MVCG -55~105 25 180 8 7.7 45 0.016 10000 AEC-Q200
    VGYE1051J680MVCG -55~105 63 68 10 10.5 42.84 0.03 10000 AEC-Q200
    VGYE1051J820MVCG -55~105 63 82 10 10.5 51.66 0.03 10000 AEC-Q200
    VGYE1301J101MVCG -55~105 63 100 10 13 63 0.02 10000 AEC-Q200
    VGYD1051K220MVCG -55~105 80 22 8 10.5 17.6 0.045 10000 AEC-Q200
    VGYE1051V331MVCG -55~105 35 330 10 10.5 115.5 0.02 10000 AEC-Q200
    VGYE1051K330MVCG -55~105 80 33 10 10.5 26.4 0.036 10000 AEC-Q200
    VGYE1251H121MVCG -55~105 50 120 10 12.5 60 0.019 10000 AEC-Q200
    VGYE1051K390MVCG -55~105 80 39 10 10.5 31.2 0.035 10000 AEC-Q200
    VGYE1251J101MVCG -55~105 63 100 10 12.5 63 0.02 10000 AEC-Q200
    VGYE1051C471MVKZ -55~105 16 470 10 10.5 75.2 0.018 10000 AEC-Q200
    VGYD1051E151MVKZ -55~105 25 150 8 10.5 37.5 0.027 10000 AEC-Q200
    VGYD1051E221MVKZ -55~105 25 220 8 10.5 55 0.027 10000 AEC-Q200
    VGYE1051E271MVKZ -55~105 25 270 10 10.5 67.5 0.02 10000 AEC-Q200
    VGYE1051E331MVKZ -55~105 25 330 10 10.5 82.5 0.02 10000 AEC-Q200
    VGYE1301E331MVKZ -55~105 25 330 10 13 82.5 0.016 10000 AEC-Q200
    VGYD1051V101MVKZ -55~105 35 100 8 10.5 35 0.027 10000 AEC-Q200
    VGYD1051V151MVKZ -55~105 35 150 8 10.5 52.5 0.027 10000 AEC-Q200
    VGYE1051V151MVKZ -55~105 35 150 10 10.5 52.5 0.02 10000 AEC-Q200
    VGYE1051V271MVKZ -55~105 35 270 10 10.5 94.5 0.02 10000 AEC-Q200
    VGYE1301V271MVKZ -55~105 35 270 10 13 94.5 0.017 10000 AEC-Q200
    VGYD1051H330MVKZ -55~105 50 33 8 10.5 16.5 0.03 10000 AEC-Q200
    VGYD1051H470MVKZ -55~105 50 47 8 10.5 23.5 0.03 10000 AEC-Q200
    VGYD1051H560MVKZ -55~105 50 56 8 10.5 28 0.03 10000 AEC-Q200
    VGYD1051H680MVKZ -55~105 50 68 8 10.5 34 0.03 10000 AEC-Q200
    VGYE1051H101MVKZ -55~105 50 100 10 10.5 50 0.028 10000 AEC-Q200
    VGYE1051H121MVKZ -55~105 50 120 10 10.5 60 0.025 10000 AEC-Q200
    VGYE1301H121MVKZ -55~105 50 120 10 13 60 0.019 10000 AEC-Q200
    VGYD1051J220MVKZ -55~105 63 22 8 10.5 13.86 0.04 10000 AEC-Q200
    VGYD1051J330MVKZ -55~105 63 33 8 10.5 20.79 0.04 10000 AEC-Q200
    VGYD1051J470MVKZ -55~105 63 47 8 10.5 29.61 0.04 10000 AEC-Q200
    VGYE1051J560MVKZ -55~105 63 56 10 10.5 35.28 0.03 10000 AEC-Q200
    VGYE1051J680MVKZ -55~105 63 68 10 10.5 42.84 0.03 10000 AEC-Q200
    VGYE1051J820MVKZ -55~105 63 82 10 10.5 51.66 0.03 10000 AEC-Q200
    VGYE1301J101MVKZ -55~105 63 100 10 13 63 0.02 10000 AEC-Q200
    VGYD1051K220MVKZ -55~105 80 22 8 10.5 17.6 0.045 10000 AEC-Q200
    VGYE1051K330MVKZ -55~105 80 33 10 10.5 26.4 0.036 10000 AEC-Q200
    VGYE1051K390MVKZ -55~105 80 39 10 10.5 31.2 0.035 10000 AEC-Q200
    VGYB0581C470MVCG -55~105 16 47 5 5.8 7.52 0.08 10000 AEC-Q200
    VGYC0581C820MVCG -55~105 16 82 6.3 5.8 13.12 0.045 10000 AEC-Q200
    VGYC0771C151MVCG -55~105 16 150 6.3 7.7 24 0.027 10000 AEC-Q200
    VGYD1051C271MVCG -55~105 16 270 8 10.5 43.2 0.022 10000 AEC-Q200
    VGYE1051C471MVCG -55~105 16 470 10 10.5 75.2 0.018 10000 AEC-Q200
    VGYB0581E330MVCG -55~105 25 33 5 5.8 8.25 0.08 10000 AEC-Q200
    VGYC0581E470MVCG -55~105 25 47 6.3 5.8 11.75 0.05 10000 AEC-Q200
    VGYC0581E560MVCG -55~105 25 56 6.3 5.8 14 0.05 10000 AEC-Q200
    VGYC0771E680MVCG -55~105 25 68 6.3 7.7 17 0.03 10000 AEC-Q200
    VGYC0771E101MVCG -55~105 25 100 6.3 7.7 25 0.03 10000 AEC-Q200
    VGYD1051E151MVCG -55~105 25 150 8 10.5 37.5 0.027 10000 AEC-Q200
    VGYD1051E221MVCG -55~105 25 220 8 10.5 55 0.027 10000 AEC-Q200
    VGYE1051E271MVCG -55~105 25 270 10 10.5 67.5 0.02 10000 AEC-Q200
    VGYE1051E331MVCG -55~105 25 330 10 10.5 82.5 0.02 10000 AEC-Q200
    VGYE1301E331MVCG -55~105 25 330 10 13 82.5 0.016 10000 AEC-Q200
    VGYB0581V220MVCG -55~105 35 22 5 5.8 7.7 0.1 10000 AEC-Q200
    VGYC0581V270MVCG -55~105 35 27 6.3 5.8 9.45 0.06 10000 AEC-Q200
    VGYC0581V470MVCG -55~105 35 47 6.3 5.8 16.45 0.06 10000 AEC-Q200
    VGYC0771V470MVCG -55~105 35 47 6.3 7.7 16.45 0.035 10000 AEC-Q200
    VGYC0771V680MVCG -55~105 35 68 6.3 7.7 23.8 0.035 10000 AEC-Q200
    VGYD1051V101MVCG -55~105 35 100 8 10.5 35 0.027 10000 AEC-Q200
    VGYD1051V151MVCG -55~105 35 150 8 10.5 52.5 0.027 10000 AEC-Q200
    VGYE1051V151MVCG -55~105 35 150 10 10.5 52.5 0.02 10000 AEC-Q200
    VGYE1051V271MVCG -55~105 35 270 10 10.5 94.5 0.02 10000 AEC-Q200
    VGYE1301V271MVCG -55~105 35 270 10 13 94.5 0.017 10000 AEC-Q200
    VGYB0581H100MVCG -55~105 50 10 5 5.8 5 0.12 10000 AEC-Q200
    VGYC0581H100MVCG -55~105 50 10 6.3 5.8 5 0.08 10000 AEC-Q200
    VGYC0581H150MVCG -55~105 50 15 6.3 5.8 7.5 0.08 10000 AEC-Q200
    VGYC0581H220MVCG -55~105 50 22 6.3 5.8 11 0.08 10000 AEC-Q200
    VGYC0771C221MVCG -55~105 16 220 6.3 7.7 35.2 0.027 10000 AEC-Q200
    VGYC0771H330MVCG -55~105 50 33 6.3 7.7 16.5 0.04 10000 AEC-Q200
    VGYC0771E221MVCG -55~105 25 220 6.3 7.7 55 0.03 10000 AEC-Q200
    VGYD1051H330MVCG -55~105 50 33 8 10.5 16.5 0.03 10000 AEC-Q200
    VGYC0771V101MVCG -55~105 35 100 6.3 7.7 35 0.035 10000 AEC-Q200
    VGYD1051H470MVCG -55~105 50 47 8 10.5 23.5 0.03 10000 AEC-Q200
    VGYC0581V330MVCG -55~105 35 33 6.3 5.8 11.55 0.06 10000 AEC-Q200
    VGYD1051H560MVCG -55~105 50 56 8 10.5 28 0.03 10000 AEC-Q200
    VGYC0771H470MVCG -55~105 50 47 6.3 7.7 23.5 0.04 10000 AEC-Q200
    VGYD1051H680MVCG -55~105 50 68 8 10.5 34 0.03 10000 AEC-Q200
    VGYE1051H101MVCG -55~105 50 100 10 10.5 50 0.028 10000 AEC-Q200
    VGYE1051H121MVCG -55~105 50 120 10 10.5 60 0.025 10000 AEC-Q200
    VGYE1301H121MVCG -55~105 50 120 10 13 60 0.019 10000 AEC-Q200
    VGYC0581J6R8MVCG -55~105 63 6.8 6.3 5.8 4.284 0.12 10000 AEC-Q200
    VGYC0581J100MVCG -55~105 63 10 6.3 5.8 6.3 0.12 10000 AEC-Q200
    VGYC0771J100MVCG -55~105 63 10 6.3 7.7 6.3 0.08 10000 AEC-Q200
    VGYC0771J150MVCG -55~105 63 15 6.3 7.7 9.45 0.08 10000 AEC-Q200
