Short Description:

Conductive Polymer Aluminum Solid Electrolytic Capacitors
SMD Type

High reliability, low ESR, high allowable ripple current,

Guaranteed for 2000 hours at 105℃,Complied with RoHS Directive,High voltage surface mount type


Product Detail

list of products number

Product Tags

Main technical parameters

project

characteristic

range of working temperature

-55~+105℃

Rated working voltage

125 -250V

capacity range

1 - 82 uF 120Hz 20℃

Capacity tolerance

±20% (120Hz 20℃)

loss tangent

120Hz 20℃ below the value in the list of standard products

Leakage current※

Charge for 2 minutes at rated voltage below the value in the list of standard products at 20°C

Equivalent Series Resistance (ESR)

100kHz 20°C below the value in the list of standard products





Durability

The product should meet the temperature of 105 ℃, apply the rated working voltage for 2000 hours, and after 16 hours at 20 ℃,

Capacitance change rate

±20% of initial value

Equivalent Series Resistance (ESR)

≤150% of initial specification value

loss tangent

≤150% of initial specification value

leakage current

≤Initial specification value





High temperature and humidity

The product should meet the conditions of 60°C temperature and 90%~95%R.H humidity without applying voltage, place it for 1000 hours, and place it at 20°C for 16 hours

Capacitance change rate

±20% of initial value

Equivalent Series Resistance (ESR)

≤150% of initial specification value

loss tangent

≤150% of initial specification value

leakage current

≤Initial specification value

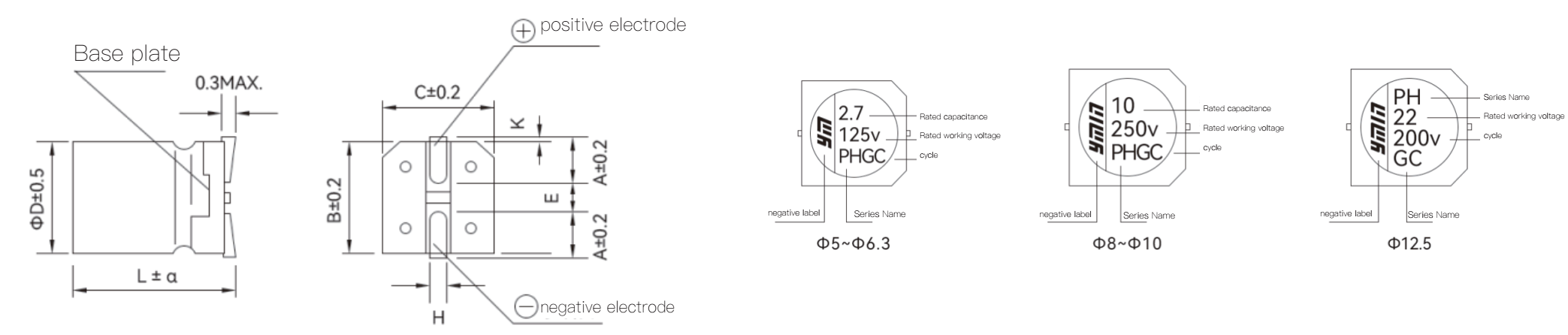

Product Dimensional Drawing

ΦD B C A H E K a
5 5.3 5.3 2.1 0.70±0.20 1.3 0.5MAX ±0.5
6.3 6.6 6.6 2.6 0.70±0.20 1.8 0.5MAX
8 8.3 8.3 3 0.90±0.20 3.1 0.5MAX
10 10.3 10.3 3.5 0.90±0.20 4.6 0.7±0.2
12.5 12.8 12.8 4.7 0.90±0.30 4.4 0.7±0.3

Ripple Current Frequency Correction Coefficient

frequency correction factor

Frequency (Hz) 120Hz 1kHz 10kHz 100kHz 500kHz
correction factor 0.05 0.3 0.7 1 1

Conductive Polymer Solid Aluminum Electrolytic Capacitors: Advanced Components for Modern Electronics

Conductive Polymer Solid Aluminum Electrolytic Capacitors represent a significant advancement in capacitor technology, offering superior performance, reliability, and longevity compared to traditional electrolytic capacitors. In this article, we'll explore the features, benefits, and applications of these innovative components.

Features

Conductive Polymer Solid Aluminum Electrolytic Capacitors combine the benefits of traditional aluminum electrolytic capacitors with the enhanced characteristics of conductive polymer materials. The electrolyte in these capacitors is a conductive polymer, which replaces the traditional liquid or gel electrolyte found in conventional aluminum electrolytic capacitors.

One of the key features of Conductive Polymer Solid Aluminum Electrolytic Capacitors is their low equivalent series resistance (ESR) and high ripple current handling capabilities. This results in improved efficiency, reduced power losses, and enhanced reliability, particularly in high-frequency applications.

Additionally, these capacitors offer excellent stability over a wide temperature range and have a longer operational lifespan compared to traditional electrolytic capacitors. Their solid construction eliminates the risk of leakage or drying out of the electrolyte, ensuring consistent performance even in harsh operating conditions.

Benefits

The adoption of conductive polymer materials in Solid Aluminum Electrolytic Capacitors brings several benefits to electronic systems. Firstly, their low ESR and high ripple current ratings make them ideal for use in power supply units, voltage regulators, and DC-DC converters, where they help to stabilize output voltages and improve efficiency.

Secondly, Conductive Polymer Solid Aluminum Electrolytic Capacitors offer enhanced reliability and durability, making them suitable for mission-critical applications in industries such as automotive, aerospace, telecommunications, and industrial automation. Their ability to withstand high temperatures, vibrations, and electrical stresses ensures long-term performance and reduces the risk of premature failure.

Furthermore, these capacitors exhibit low impedance characteristics, which contribute to improved noise filtering and signal integrity in electronic circuits. This makes them valuable components in audio amplifiers, audio equipment, and high-fidelity audio systems.

Applications

Conductive Polymer Solid Aluminum Electrolytic Capacitors find applications in a wide range of electronic systems and devices. They are commonly used in power supply units, voltage regulators, motor drives, LED lighting, telecommunications equipment, and automotive electronics.

In power supply units, these capacitors help to stabilize output voltages, reduce ripple, and improve transient response, ensuring reliable and efficient operation. In automotive electronics, they contribute to the performance and longevity of onboard systems, such as engine control units (ECUs), infotainment systems, and safety features.

Conclusion

Conductive Polymer Solid Aluminum Electrolytic Capacitors represent a significant advancement in capacitor technology, offering superior performance, reliability, and longevity for modern electronic systems. With their low ESR, high ripple current handling capabilities, and enhanced durability, they are well-suited for a wide range of applications in various industries.

As electronic devices and systems continue to evolve, the demand for high-performance capacitors like Conductive Polymer Solid Aluminum Electrolytic Capacitors is expected to grow. Their ability to meet the stringent requirements of modern electronics makes them indispensable components in today's electronic designs, contributing to improved efficiency, reliability, and performance.

  • Previous:
  • Next:
    • Products Code Temperature(℃） Rated Voltage（V.DC） Capacitance（uF) Diameter(mm) Height(mm) Leakage current(uA) ESR/Impedance  [Ωmax] Life(Hrs)
    VPHC0582B1R5MVTM -55~105 125 1.5 6.3 5.8 300 0.4 2000
    VPHC0582B2R2MVTM -55~105 125 2.2 6.3 5.8 300 0.4 2000
    VPHC0772B2R7MVTM -55~105 125 2.7 6.3 7.7 300 0.35 2000
    VPHC0772B3R3MVTM -55~105 125 3.3 6.3 7.7 300 0.35 2000
    VPHC1002B4R7MVTM -55~105 125 4.7 6.3 10 300 0.25 2000
    VPHC1002B5R6MVTM -55~105 125 5.6 6.3 10 300 0.25 2000
    VPHD0772B5R6MVTM -55~105 125 5.6 8 7.7 300 0.2 2000
    VPHC1202B6R8MVTM -55~105 125 6.8 6.3 12 300 0.2 2000
    VPHD0772B6R8MVTM -55~105 125 6.8 8 7.7 300 0.2 2000
    VPHC1202B8R2MVTM -55~105 125 8.2 6.3 12 300 0.2 2000
    VPHD0952B8R2MVTM -55~105 125 8.2 8 9.5 300 0.08 2000
    VPHD0952B100MVTM -55~105 125 10 8 9.5 300 0.08 2000
    VPHD1252B120MVTM -55~105 125 12 8 12.5 300 0.08 2000
    VPHE0852B120MVTM -55~105 125 12 10 8.5 300 0.1 2000
    VPHD1252B150MVTM -55~105 125 15 8 12.5 375 0.08 2000
    VPHE1002B150MVTM -55~105 125 15 10 10 375 0.08 2000
    VPHD1302B180MVTM -55~105 125 18 8 13.5 450 0.08 2000
    VPHE1052B180MVTM -55~105 125 18 10 10.5 450 0.08 2000
    VPHD1602B220MVTM -55~105 125 22 8 16 550 0.06 2000
    VPHE1202B220MVTM -55~105 125 22 10 12 550 0.08 2000
    VPHD1702B270MVTM -55~105 125 27 8 17 675 0.06 2000
    VPHE1402B270MVTM -55~105 125 27 10 14 675 0.08 2000
    VPHE1652B330MVTM -55~105 125 33 10 16.5 825 0.06 2000
    VPHE1802B390MVTM -55~105 125 39 10 18 975 0.06 2000
    VPHL1302B390MVTM -55~105 125 39 12.5 13 975 0.08 2000
    VPHE1902B470MVTM -55~105 125 47 10 19 1175 0.06 2000
    VPHL1402B470MVTM -55~105 125 47 12.5 14 1175 0.08 2000
    VPHE2202B560MVTM -55~105 125 56 10 22 1400 0.06 2000
    VPHL1702B560MVTM -55~105 125 56 12.5 17 1400 0.06 2000
    VPHL1702B680MVTM -55~105 125 68 12.5 17 1700 0.06 2000
    VPHL2102B820MVTM -55~105 125 82 12.5 21 2050 0.06 2000
    VPHB0582C1R0MVTM -55~105 160 1 5 5.8 300 0.5 2000
    VPHB0582C1R2MVTM -55~105 160 1.2 5 5.8 300 0.5 2000
    VPHC0582C1R5MVTM -55~105 160 1.5 6.3 5.8 300 0.4 2000
    VPHC0772C2R2MVTM -55~105 160 2.2 6.3 7.7 300 0.35 2000
    VPHC1002C3R3MVTM -55~105 160 3.3 6.3 10 300 0.25 2000
    VPHD0772C3R3MVTM -55~105 160 3.3 8 7.7 300 0.2 2000
    VPHC1202C4R7MVTM -55~105 160 4.7 6.3 12 300 0.2 2000
    VPHD0852C4R7MVTM -55~105 160 4.7 8 8.5 300 0.15 2000
    VPHC1202C5R6MVTM -55~105 160 5.6 6.3 12 300 0.2 2000
    VPHD0772C5R6MVTM -55~105 160 5.6 8 7.7 300 0.2 2000
    VPHC1202C6R8MVTM -55~105 160 6.8 6.3 12 300 0.2 2000
    VPHD0952C6R8MVTM -55~105 160 6.8 8 9.5 300 0.08 2000
    VPHD0952C8R2MVTM -55~105 160 8.2 8 9.5 300 0.08 2000
    VPHE0852C8R2MVTM -55~105 160 8.2 10 8.5 300 0.1 2000
    VPHD1252C100MVTM -55~105 160 10 8 12.5 320 0.08 2000
    VPHE1002C100MVTM -55~105 160 10 10 10 320 0.08 2000
    VPHD1252C120MVTM -55~105 160 12 8 12.5 384 0.08 2000
    VPHE1002C120MVTM -55~105 160 12 10 10 384 0.08 2000
    VPHD1302C150MVTM -55~105 160 15 8 13.5 480 0.08 2000
    VPHE1202C150MVTM -55~105 160 15 10 12 480 0.08 2000
    VPHD1602C180MVTM -55~105 160 18 8 16 576 0.06 2000
    VPHE1202C180MVTM -55~105 160 18 10 12 576 0.08 2000
    VPHD1802C220MVTM -55~105 160 22 8 18 704 0.06 2000
    VPHE1402C220MVTM -55~105 160 22 10 14 704 0.08 2000
    VPHD1802C270MVTM -55~105 160 27 8 18 864 0.06 2000
    VPHE1552C270MVTM -55~105 160 27 10 15.5 864 0.06 2000
    VPHE1802C330MVTM -55~105 160 33 10 18 1056 0.06 2000
    VPHE1902C390MVTM -55~105 160 39 10 19 1248 0.06 2000
    VPHL1402C390MVTM -55~105 160 39 12.5 14 1248 0.08 2000
    VPHL1702C470MVTM -55~105 160 47 12.5 17 1504 0.08 2000
    VPHL1702C560MVTM -55~105 160 56 12.5 17 1792 0.06 2000
    VPHL2102C680MVTM -55~105 160 68 12.5 21 2176 0.06 2000
    VPHC0582D1R0MVTM -55~105 200 1 6.3 5.8 300 0.4 2000
    VPHC0772D1R5MVTM -55~105 200 1.5 6.3 7.7 300 0.35 2000
    VPHC1002D2R2MVTM -55~105 200 2.2 6.3 10 300 0.25 2000
    VPHD0772D3R3MVTM -55~105 200 3.3 8 7.7 300 0.2 2000
    VPHD0952D3R9MVTM -55~105 200 3.9 8 9.5 300 0.1 2000
    VPHD0952D4R7MVTM -55~105 200 4.7 8 9.5 300 0.08 2000
    VPHE0852D4R7MVTM -55~105 200 4.7 10 8.5 300 0.1 2000
    VPHD1252D5R6MVTM -55~105 200 5.6 8 12.5 300 0.08 2000
    VPHD1252D6R8MVTM -55~105 200 6.8 8 12.5 300 0.08 2000
    VPHE1002D6R8MVTM -55~105 200 6.8 10 10 300 0.08 2000
    VPHD1452D8R2MVTM -55~105 200 8.2 8 14.5 328 0.08 2000
    VPHE1002D8R2MVTM -55~105 200 8.2 10 10 328 0.08 2000
    VPHD1702D100MVTM -55~105 200 10 8 17 400 0.06 2000
    VPHE1302D100MVTM -55~105 200 10 10 13 400 0.08 2000
    VPHE1402D150MVTM -55~105 200 15 10 14 600 0.08 2000
    VPHE1652D180MVTM -55~105 200 18 10 16.5 720 0.06 2000
    VPHL1302D180MVTM -55~105 200 18 12.5 13 720 0.06 2000
    VPHL1402D220MVTM -55~105 200 22 12.5 14 880 0.08 2000
    VPHD1252E4R7MVTM -55~105 250 4.7 8 12.5 300 0.08 2000
    VPHD1452E6R8MVTM -55~105 250 6.8 8 14.5 340 0.08 2000
    VPHE1302E6R8MVTM -55~105 250 6.8 10 13 340 0.08 2000
    VPHD1702E8R2MVTM -55~105 250 8.2 8 17 410 0.06 2000
    VPHE1302E8R2MVTM -55~105 250 8.2 10 13 410 0.08 2000
    VPHE1302E100MVTM -55~105 250 10 10 13 500 0.08 2000
