Short Description:

Conductive Tantalum Capacitor

miniaturization (L 3.5*W 2.8*H 1.9), low ESR, high ripple current, etc.

It is a high withstand voltage product (75V max.), corresponding to the RoHS directive (2011/65/EU).


Product Detail

List of standard products

Product Tags

Main technical parameters

Item characteristic
range of w orking temperature -55 〜+105℃
Rated working voltage 2-75V
capacity range 1.5-470uF120Hz/20℃
Capacity tolerance ±20% (120Hz/20℃)
loss tangent 120Hz/20℃ below the value in the list of standard products
leakage current Charge for 5 minutes at rated voltage below the value in the list of standard products at 20℃
&|uivalent SeriesResistance (ESR) 100KHz/20℃ below the value in the list of standard products
Surge voltage (V) 1.15 times the rated voltage
Durability At a temperature of 105℃, the product w ith a rated temperature of 85℃ is applied w ith a rated working voltage for 2000 hours at a temperature of 85℃, and after being placed at 20℃ for 16 hours, the product should meet:
Capacitance change rate ±20% of initial value
loss tangent <150% of initial specification value
leakage current <lnitial specification value
High tennperature and humidity After being placed at a temperature of 60 C and a humidity of 90% to 95% R.Hfor 500 hours w ithout applying voltage, and at 20 ℃ for 16 hours, the product should meet the follow ing requirements:
Capacitance change rate +40% -20% of initial value
loss tangent <150% of initial specification value
leakage current <300% of the initial specification value



Conductive polymer tantalum electrolytic capacitor TPB1901

Characteristic

Conductive polymer tantalum electrolytic capacitor TPB1902

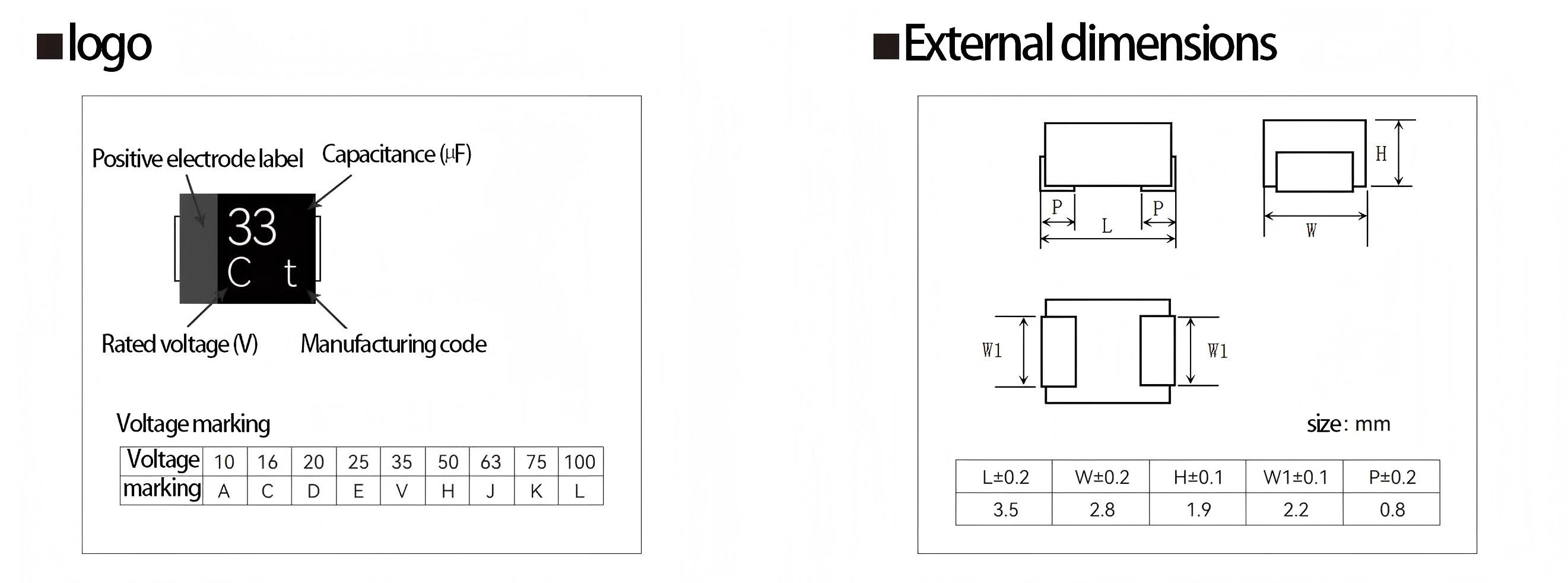

Appearance size

Temperature coefficient of rated ripple current

Temperature -55℃＜T≤45℃ 45℃＜T≤85℃ 85℃＜T≤105℃
Rated 85 ℃ product coefficient 1.0  0.7 /
Rated 105 ℃ product coefficient 1.0  0.7 0.25

Note: The surface temperature of the capacitor does not exceed the maximum operating temperature of the product

Rated ripple current frequency correction factor

Frequency（Hz） 120Hz 1kHz 10kHz 100-300kHz
Correction factor 0.10  0.45  0.50  1.00

Standard product list

rated Voltage rated temperature                                 (℃） Category Volt          (V) Category Temperature(℃） Capacitance（uF） Dimension（mm） L.C (uA,5min) Tanδ 120Hz ESR(mΩ 100KHz） Rated ripple current，(mA/r.m.s)45°C100KHz
L W H
16 105℃ 16 105℃ 10 3.5 2.8 1.9 16 0.1 100 900
105℃ 16 105℃ 15 3.5 2.8 1.9 24 0.1 70 1100
105℃ 16 105℃ 33 3.5 2.8 1.9 53 0.1 70 1100
20 105℃ 20 105℃ 10 3.5 2.8 1.9 20 0.1 100 900
105℃ 20 105℃ 22 3.5 2.8 1.9 44 0.1 90 950
25 105℃ 25 105℃ 10 3.5 2.8 1.9 25 0.1 100 900
105℃ 25 105℃ 15 3.5 2.8 1.9 37.5 0.1 100 900
35 105℃ 35 105℃ 4.7 3.5 2.8 1.9 16.5 0.1 150 800
105℃ 35 105℃ 6.8 3.5 2.8 1.9 23.8 0.1 150 800
105℃ 35 105℃ 10 3.5 2.8 1.9 35 0.1 150 800
105℃ 35 105℃ 12 3.5 2.8 1.9 42 0.1 150 800
50 105℃ 50 105℃ 2.2 3.5 2.8 1.9 11 0.1 200 750
105℃ 50 105℃ 3.3 3.5 2.8 1.9 16.5 0.1 200 750
63 105℃ 63 105℃ 1.5 3.5 2.8 1.9 9.5 0.1 200 750
105℃ 63 105℃ 2.2 3.5 2.8 1.9 13.9 0.1 200 750
75 105℃ 75 105℃ 1 3.5 2.8 1.9 7.5 0.1 300 600
105℃ 75 105℃ 1.5 3.5 2.8 1.9 11.3 0.1 300 600
100 105℃ 100 105℃ 1.2 3.5 2.8 1.9 12 0.1 300 600



Conductive polymer tantalum electrolytic capacitor is an electronic component with many advantages, such as large capacity, anti-interference, long life, etc. Therefore, it has been widely used in military and semiconductor industries.

1. Application in military industry In the military industry, conductive polymer tantalum electrolytic capacitors are an important electronic component. Their anti-interference performance is good, so they are very suitable for use in extreme environments. In military equipment, capacitors need to withstand currents of various natures, and high-voltage conductive polymer tantalum electrolytic capacitors become an ideal choice.

Conductive polymer tantalum electrolytic capacitors are also widely used in the field of military communications, such as in radar systems, missile control systems and military communications systems. Because conductive polymer tantalum electrolytic capacitors have the characteristics of large capacitance, good stability and long life, they are often used in circuits for energy storage and energy conversion. In addition, conductive polymer tantalum electrolytic capacitors can also be used in circuits such as electronic reactors and voltage stabilizers.

2. Application in the semiconductor industry In the semiconductor industry, conductive polymer tantalum electrolytic capacitors are also widely used. Conductive polymer tantalum electrolytic capacitors are usually used in analog circuits, such as filtering, noise reduction and various other occasions. Conductive polymer tantalum electrolytic capacitors have excellent characteristics, such as good stability and large capacity, which can enhance the circuit's anti-noise capability and improved signal quality.

On integrated circuits, conductive polymer tantalum electrolytic capacitors are also used to improve chip reliability and competitiveness in packaging and connection of electronic devices. Many important components, such as mass storage, CPU and controllers, require the application of conductive polymer tantalum electrolytic capacitors.

Conductive polymer tantalum electrolytic capacitors also have different applications in the semiconductor, optoelectronic, and quantum industries, such as LED lights, optical fiber communications, etc.

In short, conductive polymer tantalum electrolytic capacitors have excellent characteristics, making them widely used in the military and semiconductor industries. The continuous development and progress of this capacitor will play an increasingly important role in the future development of the modern electronics industry. character of.
