Short Description:

Metallized Polypropylene Film Capacitors

◆DC-LINK capacitor for PCB
Metalized polypropylene film structure
Plastic shell packaging, epoxy resin filling (UL94 V-0)

◆Excellent electrical performance


Product Detail

list of products series

Product Tags

Main Technical Parameters

Item characteristic
Reference standard GB/T 17702 (IEC 61071)
Rated voltage 500Vd.c.-1500Vd.c.
Capacity range 5uF~240uF
Climate category 40/85/56,40/105/56
Operating temperature range -40℃~105℃ (85℃~105℃: rated voltage decreases by 1.35% for every 1 degree increase in temperature)
Capacity deviation ±5%(J),±10%(K)
Withstand voltage 1.5Un (10s,20℃±5℃)
Insulation resistance >10000s (20℃,100Vd.c.,60s)
Self-inductance (Ls) < 1nH/mm lead spacing
Dielectric loss tangent 0.0002
Maximum peak current I (A) I=C><dv/dt
Non-repeatable peak current 1.4I (1000 times during life)
Overvoltage 1.1 Un (30%/d of load duration)
1.15 Un(30min/d)
1.2 Un (5min/d)
1.3 UN(1min/d)
1.5Un (During the life of this capacitor, 1000 overvoltages equal to 1.5Un and lasting 30ms are allowed)
Life expectancy 100000h@Un,7O℃,0hs=85℃
Failure rate <300FIT@Un,7O℃,0hs=85℃

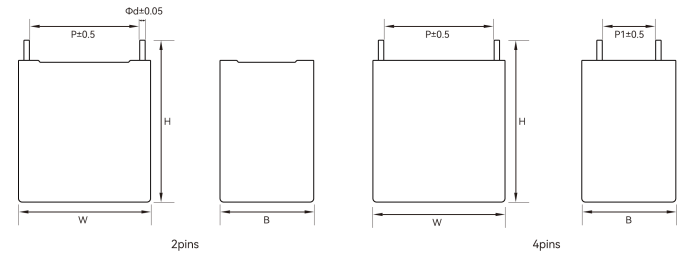

Product Dimensional Drawing

Physical Dimension(unit:mm)

Remarks: Product dimensions are in mm. Please refer to the "Product Dimensions Table" for specific dimensions.



The Main Purpose

Application areas


◇Solar inverter

◇Uninterruptible power supply

◇Military industry, high-end power supply

◇Car charger, charging pile

Introduction to Thin Film Capacitors

Thin film capacitors are essential electronic components widely used in electronic circuits. They consist of an insulating material (called the dielectric layer) between two conductors, capable of storing charge and transmitting electrical signals within a circuit. Compared to conventional electrolytic capacitors, thin film capacitors typically exhibit higher stability and lower losses. The dielectric layer is usually made of polymers or metal oxides, with thicknesses typically below a few micrometers, hence the name "thin film". Due to their small size, light weight, and stable performance, thin film capacitors find extensive applications in electronic products such as smartphones, tablets, and electronic devices.

The main advantages of thin film capacitors include high capacitance, low losses, stable performance, and long lifespan. They are used in various applications including power management, signal coupling, filtering, oscillating circuits, sensors, memory, and radio frequency (RF) applications. As the demand for smaller and more efficient electronic products continues to grow, research and development efforts in thin film capacitors are constantly advancing to meet market demands.

In summary, thin film capacitors play a crucial role in modern electronics, with their stability, performance, and wide-ranging applications making them indispensable components in circuit design.

Applications of Thin Film Capacitors in Various Industries

Electronics:

  • Smartphones and Tablets: Thin film capacitors are utilized in power management, signal coupling, filtering, and other circuitry to ensure device stability and performance.
  • Televisions and Displays: In technologies like liquid crystal displays (LCDs) and organic light-emitting diodes (OLEDs), thin film capacitors are employed for image processing and signal transmission.
  • Computers and Servers: Used for power supply circuits, memory modules, and signal processing in motherboards, servers, and processors.

Automotive and Transportation:

  • Electric Vehicles (EVs): Thin film capacitors are integrated into battery management systems for energy storage and power transmission, enhancing EV performance and efficiency.
  • Automotive Electronic Systems: In infotainment systems, navigation systems, vehicle communication, and safety systems, thin film capacitors are used for filtering, coupling, and signal processing.

Energy and Power:

  • Renewable Energy: Utilized in solar panels and wind power systems for smoothing output currents and improving energy conversion efficiency.
  • Power Electronics: In devices like inverters, converters, and voltage regulators, thin film capacitors are employed for energy storage, current smoothing, and voltage regulation.

Medical Devices:

  • Medical Imaging: In X-ray machines, magnetic resonance imaging (MRI), and ultrasound devices, thin film capacitors are used for signal processing and image reconstruction.
  • Implantable Medical Devices: Thin film capacitors provide power management and data processing functions in devices such as pacemakers, cochlear implants, and implantable biosensors.

Communications and Networking:

  • Mobile Communications: Thin film capacitors are crucial components in RF front-end modules, filters, and antenna tuning for mobile base stations, satellite communication, and wireless networks.
  • Data Centers: Used in network switches, routers, and servers for power management, data storage, and signal conditioning.

Overall, thin film capacitors play essential roles across various industries, providing critical support for the performance, stability, and functionality of electronic devices. As technology continues to advance and application areas expand, the future outlook for thin film capacitors remains promising.

  • Previous:
  • Next:
    • Rated Voltage Cn (uF) W±1 (mm) H±1 (mm) B±1 (mm) P (mm) P1 (mm) d±0.05 (mm) dv/dt (v/us) (A) tan δ(x10-4) ESR at 10kHz (mΩ) Imax (A) Products No.
    1kHz 10kHz
    500Vdc /85℃ 22 32 37 22 27.5 10.2 0.8 67 1474 9.5 95 5.8 10.1 MDP501226*032037LRY
    30 42 40 20 37.5 10.2 1 32 960 14 145 7.9 12.6 MDP501306*042040LSY
    40 42 37 28 37.5 10.2 1 32 1280 14 145 4.9 14.6 MDP501406*042037LSY
    40 42 44 24 37.5 10.2 1 32 1280 14 145 4.9 14.6 MDP501406*042044LSY
    55 42 45 30 37.5 20.3 1.2 32 1760 14 145 3.9 16.2 MDP501556*042045LSR
    65 42 46 35 37.5 20.3 1.2 32 2080 14 145 3.7 16.7 MDP501656*042046LSR
    70 42 50 35 37.5 20.3 1.2 32 2240 14 145 3.7 17.5 MDP501706*042050LSR
    90 42 55 40 37.5 20.3 1.2 32 2880 14 145 3.7 20 MDP501906*042055LSR
    120 42 62 45 37.5 20.3 1.2 32 3840 14 145 3.7 22.5 MDP501127*042062LSR
    80 57.5 45 30 52.5 20.3 1.2 17 1360 34 345 5.4 16.2 MDP501806*057045LWR
    100 57.5 50 35 52.5 20.3 1.2 17 1700 34 345 3.9 18.2 MDP501107*057050LWR
    120 57.5 56 35 52.5 20.3 1.2 17 2040 34 345 3.8 19.5 MDP501127*057056LWR
    150 57.5 64.5 35 52.5 20.3 1.2 17 2550 34 345 3.7 22 MDP501157*057064LWR
    150 57.5 55 45 52.5 20.3 1.2 17 2550 34 345 3.7 23 MDP501157*057055LWR
    160 57.5 70 35 52.5 20.3 1.2 17 2720 34 345 3.7 26 MDP501167*057070LWR
    190 57.5 65 45 52.5 20.3 1.2 17 3230 34 345 3,.7 30 MDP501197*057065LWR
    190 57.5 80 35 52.5 20.3 1.2 17 3230 34 345 3.7 30 MDP501197*057080LWR
    Rated Voltage Cn (uF) W±1 (mm) H±1 (mm) B±1 (mm) P (mm) P1 (mm) d±0.05 (mm) dv/dt (v/us) (A) tan δ(x10-4) ESR at 10kHz (mΩ) Imax (A) Products No.
    1kHz 10kHz
    600Vdc /85℃ 18 32 37 22 27.5 10.2 0.8 67 1206 10.5 98 7.9 12.2 MDP601186*032037LRY
    25 42 40 20 37.5 10.2 1 32 800 19.5 170 7.7 15.5 MDP601256*042040LSY
    30 42 37 28 37.5 10.2 1 32 960 19.5 170 6.4 18.6 MDP601306*042037LSY
    30 42 44 24 37.5 10.2 1 32 960 19.5 170 6.4 18.6 MDP601306*042044LSY
    40 42 45 30 37.5 20.3 1.2 32 1280 19.5 170 5.1 23.2 MDP601406*042045LSR
    50 42 46 35 37.5 20.3 1.2 32 1600 19.5 170 4.1 28.7 MDP601506*042046LSR
    55 42 50 35 37.5 20.3 1.2 32 1760 19.5 170 3.7 31.7 MDP601556*042050LSR
    70 42 55 40 37.5 20.3 1.2 32 2240 19.5 170 2.9 35.2 MDP601706*042055LSR
    85 42 62 45 37.5 20.3 1.2 32 2720 19.5 170 2.5 35.2 MDP601856*042062LSR
    60 57.5 45 30 52.5 20.3 1.2 17 1020 35 345 6.6 18.6 MDP601606*057045LWR
    80 57.5 50 35 52.5 20.3 1.2 17 1360 35 345 4.8 24.7 MDP601806*057050LWR
    90 57.5 56 35 52.5 20.3 1.2 17 1530 35 345 4.5 25.9 MDP601906*057056LWR
    100 57.5 64.5 35 52.5 20.3 1.2 17 1700 35 345 4.1 28.8 MDP601107*057064LWR
    110 57.5 55 45 52.5 20.3 1.2 17 1870 35 345 3.8 31.7 MDP601117*057055LWR
    120 57.5 70 35 52.5 20.3 1.2 17 2040 35 345 3.4 34.6 MDP601127*057070LWR
    140 57.5 65 45 52.5 20.3 1.2 17 2380 35 345 2.9 35 MDP601147*057065LWR
    140 57.5 80 35 52.5 20.3 1.2 17 2380 35 345 2.9 35 MDP601147*057080LWR
    Rated Voltage Cn (uF) W±1 (mm) H±1 (mm) B±1 (mm) P (mm) P1 (mm) d±0.05 (mm) dv/dt (v/us) (A) tan δ(x10-4) ESR at 10kHz (mΩ) Imax (A) Products No.
    1kHz 10kHz
    800Vdc /85℃ 14 32 37 22 27.5 10.2 0.8 67 938 9.5 93 7.5 16.6 MDP801146*032037LRY
    15 42 40 20 37.5 10.2 1 32 480 17.5 158 11.8 10.2 MDP801156*042040LSY
    25 42 37 28 37.5 10.2 1 32 800 17.5 158 7 16.9 MDP801256*042037LSY
    25 42 44 24 37.5 10.2 1 32 800 17.5 158 7 16.9 MDP801256*042044LSY
    30 42 45 30 37.5 20.3 1.2 32 960 17.5 158 5.8 20.3 MDP801306*042045LSR
    40 42 46 35 37.5 20.3 1.2 32 1280 17.5 158 4.7 25.2 MDP801406*042046LSR
    45 42 50 35 37.5 20.3 1.2 32 1440 17.5 158 4.1 28.4 MDP801456*042050LSR
    60 42 55 40 37.5 20.3 1.2 32 1920 17.5 158 3.4 34.6 MDP801606*042055LSR
    75 42 62 45 37.5 20.3 1.2 32 2400 17.5 158 2.8 35.1 MDP801756*042062LSR
    50 57.5 45 30 52.5 20.3 1.2 17 850 32 318 7 16.9 MDP801506*057045LWR
    65 57.5 50 35 52.5 20.3 1.2 17 1105 32 318 5.4 22 MDP801656*057050LWR
    75 57.5 56 35 52.5 20.3 1.2 17 1275 32 318 4.7 25.3 MDP801756*057056LWR
    90 57.5 64.5 35 52.5 20.3 1.2 17 1530 32 318 4.1 28.4 MDP801906*057064LWR
    90 57.5 55 45 52.5 20.3 1.2 17 1530 32 318 4.1 28.4 MDP801906*057055LWR
    100 57.5 70 35 52.5 20.3 1.2 17 1700 32 318 3.7 31.5 MDP801107*057070LWR
    120 57.5 65 45 52.5 20.3 1.2 17 2040 32 318 3.7 31.5 MDP801127*057065LWR
    120 57.5 80 35 52.5 20.3 1.2 17 2040 32 318 3.7 31.5 MDP801127*057080LWR
    Rated Voltage Cn (uF) W±1 (mm) H±1 (mm) B±1 (mm) P (mm) P1 (mm) d±0.05 (mm) dv/dt (v/us) (A) tan δ(x10-4) ESR at 10kHz (mΩ) Imax (A) Products No.
    1kHz 10kHz
    900Vdc /85℃ 10 32 37 22 27.5 10.2 0.8 77 770 9 89 8.5 15.5 MDP901106*032037LRY
    11 42 40 20 37.5 10.2 1 37 407 16.5 148 16.5 7.4 MDP901116*042040LSY
    15 42 37 28 37.5 10.2 1 37 555 16.5 148 11 10.9 MDP901156*042037LSY
    15 42 44 24 37.5 10.2 1 37 555 16.5 148 11 10.9 MDP901156*042044LSY
    25 42 45 30 37.5 20.3 1.2 37 925 16.5 148 6.6 18 MDP901256*042045LSR
    30 42 46 35 37.5 20.3 1.2 37 1110 16.5 148 5.5 21.6 MDP901306*042046LSR
    30 42 50 35 37.5 20.3 1.2 37 1110 16.5 148 5.5 21.6 MDP901306*042050LSR
    40 42 55 40 37.5 20.3 1.2 37 1480 16.5 148 4.4 26.9 MDP901406*042055LSR
    50 42 62 45 37.5 20.3 1.2 37 1850 16.5 148 3.5 33.6 MDP901506*042062LSR
    35 57.5 45 30 52.5 20.3 1.2 17 595 30.5 298 9.5 12.7 MDP901356*057045LWR
    50 57.5 50 35 52.5 20.3 1.2 17 850 30.5 298 6.5 18 MDP901506*057050LWR
    55 57.5 56 35 52.5 20.3 1.2 17 935 30.5 298 6 19.8 MDP901556*057056LWR
    65 57.5 64.5 35 52.5 20.3 1.2 17 1105 30.5 298 5 23.4 MDP901656*057064LWR
    65 57.5 55 45 52.5 20.3 1.2 17 1105 30.5 298 5 23.4 MDP901656*057055LWR
    70 57.5 70 35 52.5 20.3 1.2 17 1190 30.5 298 4.7 25.2 MDP901706*057070LWR
    85 57.5 65 45 52.5 20.3 1.2 17 1445 30.5 298 4.1 28.5 MDP901856*057065LWR
    85 57.5 80 35 52.5 20.3 1.2 17 1445 30.5 298 4.1 28.5 MDP901856*057080LWR
    Rated Voltage Cn (uF) W±1 (mm) H±1 (mm) B±1 (mm) P (mm) P1 (mm) d±0.05 (mm) dv/dt (v/us) (A) tan δ(x10-4) ESR at 10kHz (mΩ) Imax (A) Products No.
    1kHz 10kHz
    1000 Vdc /85℃ 8.5 32 37 22 27.5 10.2 0.8 77 654.5 8 79 9.9 13.4 MDP102855*032037LRY
    12 42 40 20 37.5 10.2 1 40 480 15 138 13 9.3 MDP102126*042040LSY
    15 42 37 28 37.5 10.2 1 40 600 15 138 10.3 11.6 MDP102156*042037LSY
    15 42 44 24 37.5 10.2 1 40 600 15 138 10.3 11.6 MDP102156*042044LSY
    20 42 45 30 37.5 20.3 1.2 40 800 15 138 7.7 15.5 MDP102206*042045LSR
    25 42 46 35 37.5 20.3 1.2 40 1000 15 138 6.1 19.3 MDP102256*042046LSR
    28 42 50 35 37.5 20.3 1.2 40 1120 15 138 6 19.5 MDP102286*042050LSR
    35 42 55 40 37.5 20.3 1.2 40 1400 15 138 4.7 25.2 MDP102356*042055LSR
    45 42 62 45 37.5 20.3 1.2 40 1800 15 138 4.1 29 MDP102456*042062LSR
    30 57.5 45 30 52.5 20.3 1.2 20 600 27.5 278 10.3 11.6 MDP102306*057045LWR
    40 57.5 50 35 52.5 20.3 1.2 20 800 27.5 278 7.7 15.5 MDP102406*057050LWR
    45 57.5 56 35 52.5 20.3 1.2 20 900 27.5 278 6.8 17.4 MDP102456*057056LWR
    55 57.5 64.5 35 52.5 20.3 1.2 20 1100 27.5 278 5.6 21.2 MDP102556*057064LWR
    55 57.5 55 45 52.5 20.3 1.2 20 1100 27.5 278 5.6 21.2 MDP102556*057055LWR
    60 57.5 70 35 52.5 20.3 1.2 20 1200 27.5 278 5.1 23.2 MDP102606*057070LWR
    70 57.5 65 45 52.5 20.3 1.2 20 1400 27.5 278 4.4 27 MDP102706*057065LWR
    70 57.5 80 35 52.5 20.3 1.2 20 1400 27.5 278 4.4 27 MDP102706*057080LWR
    Rated Voltage Cn (uF) W±1 (mm) H±1 (mm) B±1 (mm) P (mm) P1 (mm) d±0.05 (mm) dv/dt (v/us) (A) tan δ(x10-4) ESR at 10kHz (mΩ) Imax (A) Products No.
    1kHz 10kHz
    1100 Vdc /85℃ 6 32 37 22 27.5 10.2 0.8 82 492 8 70 10.1 13 MDP112066*032037LRY
    8 42 40 20 37.5 10.2 1 42 336 14.8 128 20.5 5.9 MDP112086*042040LSY
    10 42 37 28 37.5 10.2 1 42 420 148 128 144 8.4 MDP112106*042037LSY
    10 42 44 24 37.5 10.2 1 42 420 14.8 128 14.4 8.4 MDP112106*042044LSY
    15 42 45 30 37.5 20.3 1.2 42 630 14.8 128 9.6 12.5 MDP112156*042045LSR
    17 42 46 35 37.5 20.3 1.2 42 714 14.8 128 9.3 13 MDP112176*042046LSR
    20 42 50 35 37.5 20.3 1.2 42 840 14.8 128 7.1 16.7 MDP112206*042050LSR
    25 42 55 40 37.5 20.3 1.2 42 1050 14.8 128 5.7 20.8 MDP112256*042055LSR
    30 42 62 45 37.5 20.3 1.2 42 1260 14.8 128 4.7 24.9 MDP112306*042062LSR
    20 57.5 45 30 52.5 20.3 1.2 22 440 26.8 258 144 8.4 MDP112206*057045LWR
    30 57.5 50 35 52.5 20.3 1.2 22 660 26.8 258 9.6 12.5 MDP112306*057050LWR
    35 57.5 56 35 52.5 20.3 1.2 22 770 26.8 258 8.3 14.3 MDP112356*057056LWR
    40 57.5 64.5 35 52.5 20.3 1.2 22 880 26.8 258 7.7 15.6 MDP112406*057064LWR
    40 57.5 55 45 52.5 20.3 1.2 22 880 26.8 258 7.7 15.6 MDP112406*057055LWR
    45 57.5 70 35 52.5 20.3 1.2 22 990 26.8 258 6.8 17.5 MDP112456*057070LWR
    50 57.5 65 45 52.5 20.3 1.2 22 1100 26.8 258 6.2 19.4 MDP112506*057065LWR
    50 57.5 80 35 52.5 20.3 1.2 22 1100 26.8 258 6.2 19.4 MDP112506*057080LWR
    Rated Voltage Cn (uF) W±1 (mm) H±1 (mm) B±1 (mm) P (mm) P1 (mm) d±0.05 (mm) dv/dt (v/us) (A) tan δ(x10-4) ESR at 10kHz (mΩ) Imax (A) Products No.
    1kHz 10kHz
    1200 Vdc /85℃ 5 32 37 22 27.5 10.2 0.8 90 450 7 55 11 11.9 MDP122056*032037LRY
    6 42 40 20 37.5 10.2 1 47 282 12.8 98 18.5 6.6 MDP122066*042040LSY
    7 42 37 28 37.5 10.2 1 47 329 12.8 98 15.8 7.6 MDP122076*042037LSY
    8 42 44 24 37.5 10.2 1 47 376 12.8 98 13.8 8.7 MDP122086*042044LSY
    12 42 45 30 37.5 20.3 1.2 47 564 12.8 98 9.2 13 MDP122126*042045LSR
    14 42 46 35 37.5 20.3 1.2 47 658 12.8 98 8.4 14.6 MDP122146*042046LSR
    15 42 50 35 37.5 20.3 1.2 47 705 12.8 98 7.3 16.2 MDP122156*042050LSR
    20 42 55 40 37.5 20.3 1.2 47 940 12.8 98 5.9 20.2 MDP122206*042055LSR
    25 42 62 45 37.5 20.3 1.2 47 1175 12.8 98 4.7 25.2 MDP122256*042062LSR
    20 57.5 45 30 52.5 20.3 1.2 25 500 23.8 198 11.8 10.1 MDP122206*057045LWR
    25 57.5 50 35 52.5 20.3 1.2 25 625 23.8 198 9.5 12.7 MDP122256*057050LWR
    30 57.5 56 35 52.5 20.3 1.2 25 750 23.8 198 7.9 15.2 MDP122306*057056LWR
    35 57.5 64.5 35 52.5 20.3 1.2 25 875 23.8 198 6.7 17.7 MDP122356*057064LWR
    38 57.5 55 45 52.5 20.3 1.2 25 950 23.8 198 6.4 19.1 MDP122386*057055LWR
    40 57.5 70 35 52.5 20.3 1.2 25 1000 23.8 198 5.9 20.2 MDP122406*057070LWR
    45 57.5 65 45 52.5 20.3 1.2 25 1125 23.8 198 5.2 22.7 MDP122456*057065LWR
    45 57.5 80 35 52.5 20.3 1.2 25 1125 23.8 198 5.2 22.7 MDP122456*057080LWR

    • RELATED PRODUCTS
