NHM

Short Description:

Conductive Polymer Hybrid Aluminum Electrolytic Capacitors

Radial Lead Type

Low ESR, high allowable ripple current, high reliability, 125℃ 4000 hours guarantee,

compliant with AEC-Q200, already compliant with RoHS directive.


Product Detail

Product Tags

Products Number Temperature (℃) Rated Voltage (Vdc) Capacitance (μF) Diameter(mm) Length(mm) Leakage Current(μA) ESR/Impedance [Ωmax] Life (hrs)
NHME1251K820MJCG -55~125 80 82 10 12.5 82 0.02 4000

Products Certification: AEC-Q200

Main Technical Parameters

Rated voltage (V) 80
Operating temperature(°C) -55~125
Electrostatic capacity (μF) 82
Lifespan(hrs) 4000
Leakage current (μA) 65.6/20±2℃/2min
Capacity tolerance ±20%
ESR(Ω) 0.02/20±2℃/100KHz
AEC-Q200 conform to
Rated ripple current (mA/r.ms) 2200/105℃/100KHz
RoHS Directive conform to
Loss angle tangent (tanδ) 0.1/20±2℃/120Hz
reference weight ——
DiameterD(mm) 10
smallest packaging 500
HeightL(mm) 12.5
state mass product

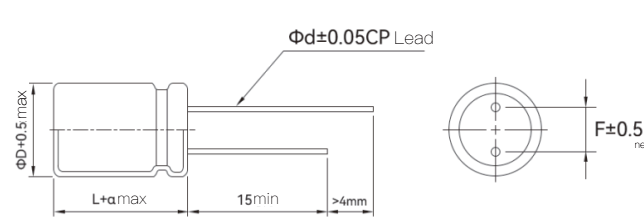

Product Dimensional Drawing

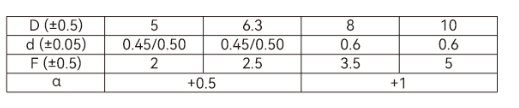

Dimension(unit:mm)

frequency correction factor

Electrostatic capacity c Frequency(Hz) 120Hz 500Hz 1kHz 5kHz 10kHz 20kHz 40kHz 100kHz 200kHz 500kHz
C<47uF correction factor 12 0 20 35 0.5 0.65 70 0.8 1 1 1.05
47μF≤C<120μF 0.15 0.3 0.45 0.6 0.75 0.8 0.85 1 1 1
C≥120μF 0.15 0.3 0.45 0.65 0.8 85 0.85 1 1 1

NHM Series Conductive Polymer Hybrid Aluminum Electrolytic Capacitors

Product Overview

The NHM series conductive polymer hybrid aluminum electrolytic capacitors are innovative high-performance electronic components developed by YMIN. They utilize advanced hybrid technology to seamlessly combine the advantages of aluminum and organic electrolytic capacitors. Featuring a radial-lead package design, these capacitors combine exceptional features such as low ESR, high ripple current, and high reliability. They offer a wide operating temperature range of -55°C to +125°C and a guaranteed service life of 4000 hours. Fully compliant with AEC-Q200 and RoHS directive requirements, they provide an ideal capacitor solution for high-end applications such as automotive electronics, industrial equipment, and communications systems.

Technical Features and Performance Advantages

Excellent Electrical Performance

The NHM series capacitors utilize innovative conductive polymer hybrid technology to achieve extremely low equivalent series resistance (ESR as low as 0.02Ω), significantly reducing energy loss and heat generation. Excellent ESR at 20±2°C and 100kHz ensures exceptional performance in high-frequency applications. The capacitors also feature a high ripple current capability, reaching 2200mA RMS at 105°C and 100kHz, providing reliable support for high-power applications.

Wide Operating Temperature Range

This series of products operates stably in extreme temperatures ranging from -55°C to +125°C, making it suitable for a variety of demanding applications. Whether in harsh outdoor environments or the heat of the engine compartment, the NHM series maintains stable performance, ensuring system reliability and stability.

Long Life and High Reliability

The NHM series has a guaranteed 4000-hour service life and has passed rigorous reliability testing. Its leakage current is extremely low, exceeding 65.6μA in a 2-minute test at 20±2°C, and its loss tangent (tanδ) is less than 0.1 at 120Hz. These excellent characteristics ensure the product's stability and reliability over long-term use.

Environmental Protection and Certification Guarantee

This product fully complies with the environmental requirements of the RoHS Directive (2011/65/EU) and contains no hazardous substances. It also has AEC-Q200 automotive-grade certification, meeting the stringent reliability and safety requirements of automotive electronics.

Application Areas

Automotive Electronic Systems

In automotive electronics, the NHM series capacitors are widely used in engine control units, in-vehicle infotainment systems, electric power steering systems, and other applications. Its AEC-Q200 certification ensures reliability in automotive environments. Its wide temperature range adapts to the harsh operating environments of automotive electronics, and its long life reduces maintenance requirements, providing a reliable power supply solution for modern automotive electronic systems.

Communications Equipment

The NHM series provides stable power filtering and energy storage in communications infrastructure, mobile phones, and network equipment. Its low ESR helps reduce power consumption in communications equipment, and its high ripple current capability ensures stability under sudden load changes, ensuring reliable operation.

Industrial Automation

In industrial control systems, the NHM series capacitors are used in PLCs, industrial PCs, motor drives, and other equipment. Its high reliability meets the long life requirements of industrial equipment, and its wide temperature range adapts to the temperature fluctuations of industrial environments, providing stable performance support for industrial automation equipment.

Power Systems

In high-voltage power transmission and grid regulation, the NHM series helps achieve efficient energy management. Its high withstand voltage (80V) is suitable for power system applications, and its low ESR reduces energy waste and improves energy efficiency, providing technical support for smart grid construction.

Technical Advantage Analysis

Innovative Advantages of Hybrid Technology

The NHM series utilizes a unique conductive polymer hybrid technology, combining the high capacitance of aluminum electrolytic capacitors with the low ESR of organic electrolytic capacitors. This innovative design achieves low ESR and high ripple current capability while maintaining high capacitance, providing an ideal capacitor solution for high-performance electronic systems.

Comprehensively Improved Reliability

Through rigorous quality control and testing processes, the NHM series has demonstrated outstanding reliability. With a 4000-hour life guarantee, a wide operating temperature range, and excellent electrical characteristics, it meets the demanding reliability requirements of various high-end applications.

Strong Environmental Adaptability

The product operates stably in temperatures ranging from -55°C to +125°C, adapting to a variety of harsh environmental conditions. This makes it particularly suitable for applications in automotive electronics, industrial equipment, and outdoor communications equipment.

Design and Application Guide

Circuit Design Considerations

When using NHM series capacitors, design engineers should note the following:
• Fully consider the operating voltage margin; it is recommended that the operating voltage not exceed 80% of the rated voltage.

• In high-frequency applications, utilize the product's low ESR characteristics to optimize system performance.

• When used in high-temperature environments, appropriate derating should be applied to ensure reliability.

• Pay attention to heat dissipation design during layout to ensure the capacitor's operating temperature is within the permitted range.

Soldering and Installation Recommendations

The product utilizes a radial lead package, suitable for automated insertion and soldering processes.

• The soldering temperature should be controlled below 260°C.

• The soldering time should be kept to a minimum to avoid thermal damage.

• During installation, pay attention to polarity markings to avoid reverse connection.

• Proper fixing measures are recommended to prevent mechanical stress.

Market Competitive Advantages

Compared to traditional aluminum electrolytic capacitors, the NHM series offers significant advantages:

• ESR is reduced by an order of magnitude, significantly improving efficiency.

• Service life is extended several times, significantly improving reliability.

• Excellent frequency characteristics, suitable for high-frequency applications.

• Wider temperature range and greater environmental adaptability

Compared to solid-state capacitors, the NHM series offers unique advantages:

• More competitive cost

• Higher voltage ratings

• A wider range of capacitance options

• Proven reliability

Quality Assurance and After-Sales Service

YMIN offers comprehensive quality assurance and after-sales service for the NHM series:

• ISO9001 quality management system certification

• Complete technical documentation and application support

• A rapid response mechanism to promptly resolve customer issues

• Sample testing and technical consulting services

Conclusion

The NHM series conductive polymer hybrid aluminum electrolytic capacitors, with their superior technical performance and reliability, are an ideal choice for high-end electronic systems. Their innovative hybrid technology, excellent electrical properties, wide temperature range, and long-life reliability make them an ideal choice for broad application in automotive electronics, communications equipment, industrial automation, and power systems.

As electronic devices continue to evolve towards higher performance and higher reliability, the importance of the NHM series capacitors will become increasingly prominent. Through continuous technological innovation and quality improvement, YMIN provides customers with high-quality product solutions and contributes to the advancement of the electronics industry.

The NHM series capacitors not only represent the current state-of-the-art in capacitor technology but also provide reliable foundational components for the future development of electronic devices. Their superior overall performance and technical advantages make them the preferred choice for engineers designing high-performance electronic systems, playing a vital role in a wide range of applications.
