High-performance MCU creates 3.5kW DC charging pile solution – YMIN capacitors provide reliable hardware guarantee

In November, GigaDevice launched a new 3.5kW DC charging pile solution based on the GD32G5 series high-performance MCU. The system uses a single MCU to control the front-stage totem pole PFC and the rear-stage full-bridge LLC two-stage topology, achieving a peak efficiency of 96.2% and a THD as low as 2.7%, meeting the high efficiency and stability requirements of new energy charging piles. With the upgrade of the charging pile solution, the performance requirements for internal components have become more stringent. After in-depth communication with GigaDevice and a detailed understanding of its specific needs, YMIN successfully developed high-performance capacitors that meet the requirements of the 3.5kW DC charging pile solution and has been successfully applied. With excellent quality, it helps to create a more efficient and reliable charging system.

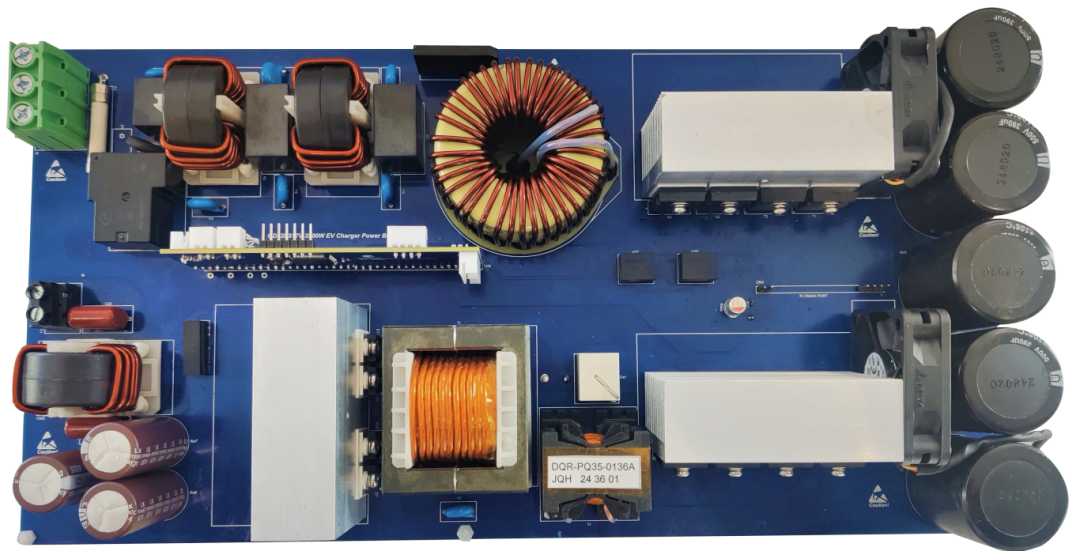

3.5kW DC charging pile solution based on GD32G5 series high-performance MCU

Solution： YMIN Snap-in Aluminum Electrolytic Capacitor

The Liquid Snap-in Aluminum Electrolytic Capacitor CW6 Series demonstrates outstanding performance in GigaDevice's 3.5kW DC charging pile solution. Its capability to withstand high ripple current and its exceptional reliability make it an ideal match for the demanding operating conditions of charging piles. It contributes to improving the efficiency and longevity of charging systems, providing robust support for the steady advancement of new energy charging technologies.

• High Ripple Current Tolerance: In PFC and LLC circuits of charging piles, it effectively meets the energy conversion demands under high-current loads, reducing ripple current losses in the circuit, enhancing overall system efficiency, and achieving a peak efficiency of 96.2%.
• Long Lifespan: The Liquid Snap-in Aluminum Electrolytic Capacitor is designed to operate reliably under high load and high voltage conditions (250VDC~450VDC), meeting the requirements for long-term stable operation of charging piles and supporting reliability while optimizing maintenance costs.
• Frequency Characteristics: At a frequency of 70kHz, the Liquid Snap-in Aluminum Electrolytic Capacitor exhibits low ESR, enabling effective filtering, ensuring stable operation of charging piles in high-frequency topologies, and improving the performance and reliability of their power systems.

Solution： YMIN Radial Lead Aluminum Electrolytic Capacitor

YMIN’s LK Series Aluminum Electrolytic Capacitors not only optimize the overall performance of charging piles but also offer greater flexibility and reliability for system design.

• Compact Size: The compact design delivers high performance while effectively saving PCB space. This meets the high-power density requirements of charging piles, enabling more possibilities for lightweight and modular system designs.
• High-Frequency Ripple Current Resistance: In PFC and LLC topologies, it effectively addresses the demands of high-current operation, reducing power losses caused by ripple current. This enhances system efficiency, achieving a peak efficiency of 96.2%.
• Low Impedance at High Frequencies: The capacitors respond rapidly to circuit demands in high-frequency environments, minimizing heat loss and voltage fluctuations caused by high-frequency currents. This ensures circuit stability and reliability while meeting the stringent power quality requirements of charging piles.

Solution： YMIN Multilayer Ceramic Capacitors

Multilayer Ceramic Chip Capacitors (MLCCs) are primarily used in circuits for high-frequency decoupling and noise suppression, enabling rapid response to high-frequency current demands and enhancing electromagnetic compatibility (EMC).

• Exceptional High-Frequency Filtering: Effectively reduces harmonic interference, improving circuit stability.
• Rapid Energy Storage and Release: Minimizes transient voltage fluctuations during sudden load changes, protecting other components from high-frequency impacts. This ensures the proper functioning of sensitive components such as MCUs and driver chips, enhancing signal integrity and system reliability.

Conclusion

YMIN is dedicated to providing customers with high-quality, high-performance capacitor products. Moving forward, we will continue to invest in R&D, consistently enhancing product performance to deliver reliable capacitor solutions for chip solution providers. If you require sample testing or have other inquiries, please scan the QR code below, and our team will assist you promptly!
