Thin film capacitors are a widely evaluated component in electronic circuits and have the advantages of high stability and long life. According to different application circuit types, film capacitors can be divided into categories such as DC circuits and AC circuits. In DC circuits, its film capacitors are mainly used for functions such as suppression, smoothing, and energy storage, while in AC circuits, they are more responsible for suspending high-frequency interference, improving power factor, and starting motors. Especially in motor drive systems, film capacitors have the characteristics of high gain and high voltage resistance, which make them a steering gear during motor starting and operation. This article will focus on the application and advantages of metallized film capacitors in motor starting.
01 Application of metallized film capacitors in motor drives and solving problems

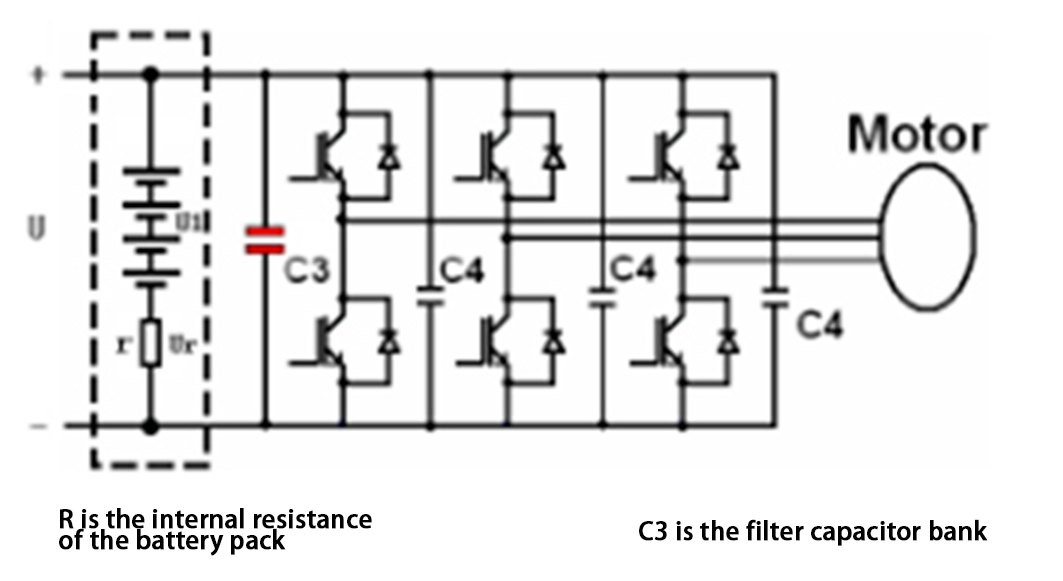

In motor drive systems, film capacitors are used on the DC side and AC side respectively, solving many problems.
| DC side film capacitor application： | |
| Function | Effects and advantages |
| Smooth voltage fluctuations | Avoid motor drive system failures due to voltage instability |
| Stable power supply | Ensure that the motor drive system operates normally in a stable voltage environment |
| AC side film capacitor application： | |
| Function | Effects and advantages |
| Filtering and compensation power | Improve motor starting efficiency, reduce inrush current during starting, and reduce starting burden |
| Reduce noise and vibration | Improve the working stability of the motor and ensure efficient operation of the motor |
| Improve power factor | Reduce energy loss and improve overall operating efficiency |
02 Comparison of metallized film capacitors and aluminum electrolytic capacitors

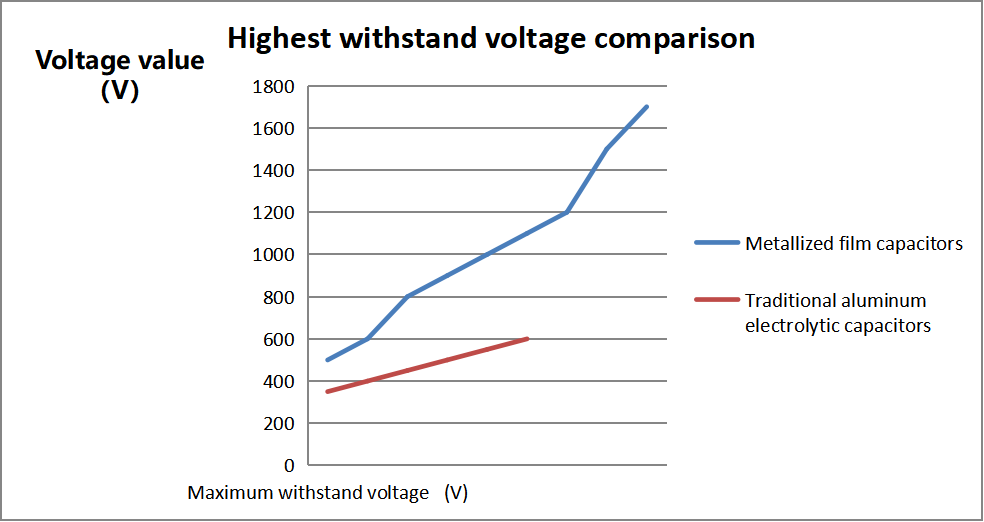

Metalized film capacitors have obvious advantages over aluminum electrolytic capacitors in terms of withstand voltage. Metallized film capacitors usually have a higher withstand voltage and can operate stably in more harsh environments. In contrast, aluminum electrolytic capacitors have lower withstand voltage, limiting their use in some high-voltage applications. Therefore, metallized film capacitors are more suitable for motor drive systems with high voltage and high stability requirements.
03 YMIN metallized film capacitor selection recommendations
The MAP series and MDP series metalized film capacitors launched by YMIN Electronics are specially designed for efficient motor drive systems to meet the needs of various complex working conditions.
| series | MAP | |
| Application scenarios | AC side smoothing filter capacitor | |
| picture |  |
|
| Rated rms voltage (V) | 300Vac | 350Vac |
| Maximum continuous DC voltage (V) | 560Vdc | 600V dc |
| Capacity range(uF) | 4.7uF~28uF | 3uF~20uF |
| Working temperature (℃) | -40~105 | |
| Lifespan (hours) | 100000 | |
| series | MDP | |
| Application scenarios | DC support capacitor on DC side | |
| picture |  |
|
| Rated voltage (V) | 500~1700V | |
| Capacity range (uF) | 5uF~240uF | |
| Working temperature (℃) | -40~105 | |
| Lifespan (hours) | 100000 | |
04 Summarize
As motor technology develops towards high efficiency, energy saving and intelligence, improving starting efficiency and operating reliability has become a key goal. Metallized film capacitors play a vital role in motor drive systems due to their excellent performance. YMIN‘s MAP series and MDP series film capacitors, with their high withstand voltage, low ESR and long life, provide efficient solutions for motor equipment in the industrial and consumer fields. In the future, with the rapid development of new energy technology and smart manufacturing, metallized film capacitors will further optimize their performance to achieve higher current density, longer life and lower power consumption, helping motor drive systems move to higher levels. level.
