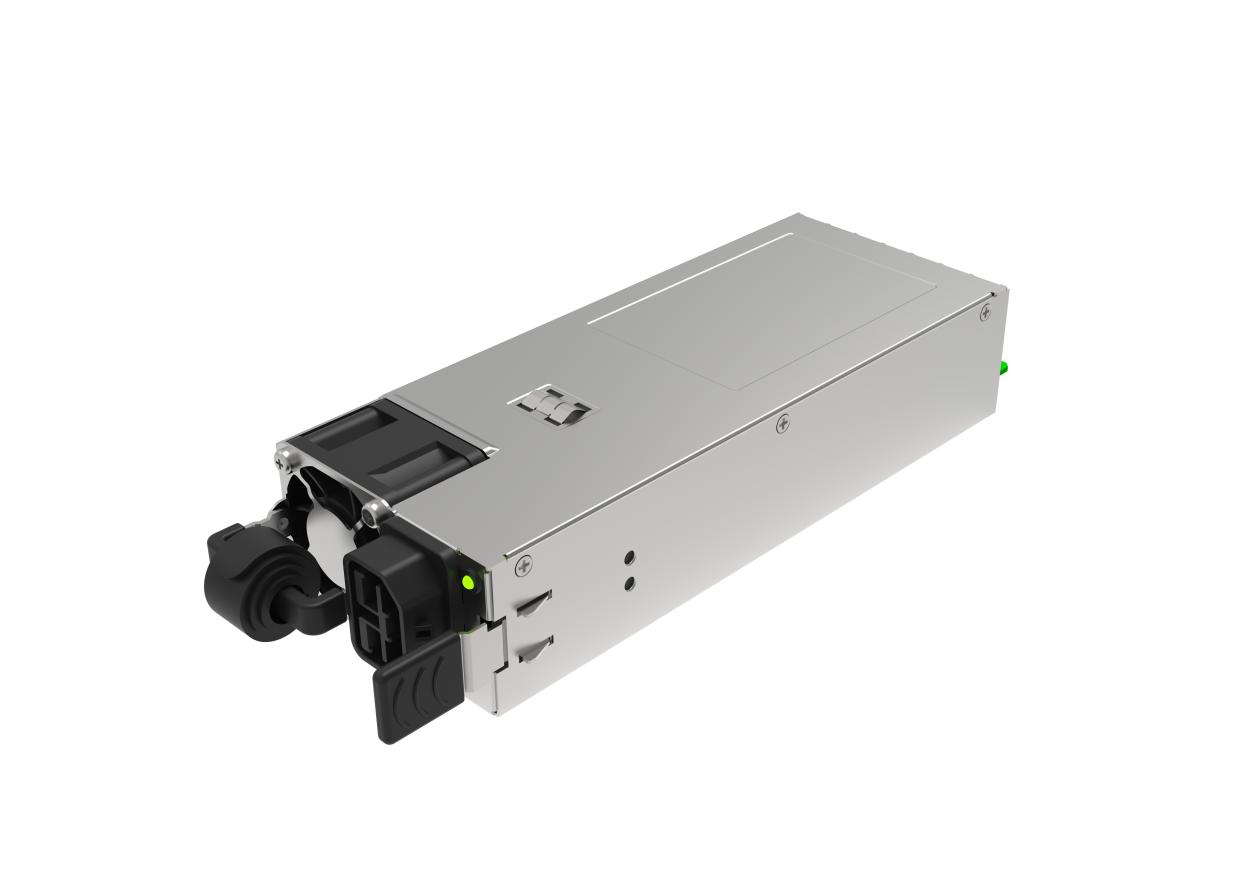

Recently, Navitas introduced the CRPS 185 4.5kW AI data center power supply, which utilizes YMIN’s CW3 1200uF, 450V capacitors. This capacitor choice allows the power supply to achieve a 97% power factor at half-load. This technological advancement not only optimizes the power supply’s performance but also significantly improves energy efficiency, particularly at lower loads. This development is crucial for data center power management and energy savings, as efficient operation not only reduces energy consumption but also lowers operational costs.
In modern electrical systems, capacitors are used not only for energy storage and filtering but also play a crucial role in improving power factor. Power factor is an important indicator of electrical system efficiency, and capacitors, as effective tools for improving power factor, have a significant impact on enhancing the overall performance of electrical systems. This article will explore how capacitors affect power factor and discuss their role in practical applications.
1. Basic Principles of Capacitors
A capacitor is an electronic component made up of two conductors (electrodes) and an insulating material (dielectric). Its primary function is to store and release electrical energy in an alternating current (AC) circuit. When an AC current flows through a capacitor, an electric field is generated within the capacitor, storing energy. As the current changes, the capacitor releases this stored energy. This ability to store and release energy makes capacitors effective in adjusting the phase relationship between current and voltage, which is particularly important in handling AC signals.
This characteristic of capacitors is evident in practical applications. For example, in filter circuits, capacitors can block direct current (DC) while allowing AC signals to pass through, thereby reducing noise in the signal. In power systems, capacitors can balance voltage fluctuations in the circuit, enhancing the stability and reliability of the power system.
2. Concept of Power Factor
In an AC circuit, the power factor is the ratio of actual power (real power) to apparent power. Actual power is the power converted into useful work in the circuit, while apparent power is the total power in the circuit, including both real power and reactive power. The power factor (PF) is given by:
where P is the real power and S is the apparent power. The power factor ranges from 0 to 1, with values closer to 1 indicating higher efficiency in power utilization. A high power factor means that most of the power is effectively converted into useful work, whereas a low power factor indicates that a significant amount of power is wasted as reactive power.
3. Reactive Power and Power Factor
In AC circuits, reactive power refers to the power caused by the phase difference between current and voltage. This power does not convert into actual work but exists due to the energy storage effects of inductors and capacitors. Inductors typically introduce positive reactive power, while capacitors introduce negative reactive power. The presence of reactive power results in reduced efficiency in the power system, as it increases the overall load without contributing to useful work.
A decrease in power factor generally indicates higher levels of reactive power in the circuit, leading to a reduction in the overall efficiency of the power system. One effective way to reduce reactive power is by adding capacitors, which can help improve the power factor and, in turn, enhance the overall efficiency of the power system.
4. Impact of Capacitors on Power Factor
Capacitors can improve power factor by reducing reactive power. When capacitors are used in a circuit, they can offset some of the reactive power introduced by inductors, thereby reducing the total reactive power in the circuit. This effect can significantly increase the power factor, bringing it closer to 1, which means that the efficiency of power utilization is greatly improved.
For instance, in industrial power systems, capacitors can be used to compensate for the reactive power introduced by inductive loads such as motors and transformers. By adding appropriate capacitors to the system, the power factor can be improved, reducing power losses and increasing the efficiency of energy usage.
5. Capacitor Configuration in Practical Applications
In practical applications, the configuration of capacitors is often closely related to the nature of the load. For inductive loads (such as motors and transformers), capacitors can be used to compensate for the reactive power introduced, thereby improving the power factor. For example, in industrial power systems, using capacitor banks can reduce the reactive power burden on transformers and cables, improving power transmission efficiency and reducing power losses.
In high-load environments such as data centers, capacitor configuration is especially important. The Navitas CRPS 185 4.5kW AI data center power supply, for instance, uses YMIN’s CW3 1200uF, 450V capacitors to achieve a 97% power factor at half-load. This configuration not only enhances the efficiency of the power supply but also optimizes the overall energy management of the data center. Such technological improvements help data centers significantly reduce energy costs and enhance operational sustainability.
6. Half-Load Power and Capacitors
Half-load power refers to 50% of the rated power. In practical applications, proper capacitor configuration can optimize the power factor of the load, thereby improving power utilization efficiency at half-load. For example, a motor with a rated power of 1000W, if equipped with appropriate capacitors, can maintain a high power factor even at a load of 500W, ensuring effective energy use. This is particularly important for applications with fluctuating loads, as it enhances the stability of the system’s operation.
Conclusion
The application of capacitors in electrical systems is not only for energy storage and filtering but also for improving power factor and increasing the overall efficiency of the power system. By properly configuring capacitors, reactive power can be significantly reduced, power factor can be optimized, and the efficiency and cost-effectiveness of the power system can be enhanced. Understanding the role of capacitors and configuring them based on actual load conditions is key to improving the performance of electrical systems. The success of the Navitas CRPS 185 4.5kW AI data center power supply illustrates the substantial potential and advantages of advanced capacitor technology in practical applications, providing valuable insights for optimizing power systems.
Post time: Aug-26-2024
