With the development of the automobile industry, on-board chargers are widely used, showing the characteristics of versatility, portability and fashion. In the market, on-board chargers can be divided into two types, gallium nitride chargers and ordinary chargers. Gallium nitride has a wider band gap, better conductivity, and higher efficiency in transmitting electricity than traditional materials. In addition, it is smaller in size at the same ratio, making it the best material for on-board chargers.
01 Car GaN PD fast charging
Car chargers are accessories that are designed to facilitate charging digital products anytime and anywhere with the car power supply. Car chargers must consider both the actual needs of battery charging and the harsh environment of the car battery. Therefore, the power management selected by the car charger must meet the following requirements: large ripple resistance, large capacity, small size, and low ESR capacitors for stable current output.
02 Selection of YMIN solid-liquid hybrid chip type aluminum electrolytic capacitors
| Series | Volt | capacity(uF) | dimension(mm) | Temperature(℃） | lifespan（Hrs） | features |
| VGY | 35 | 68 | 6.3×5.8 | -55~+105 | 10000 | Low ESR High ripple resistance Large capacity Small size |
| 35 | 68 | 6.3×7.7 | ||||
| VHT | 25 | 100 | 6.3×7.7 | -55~+125 | 4000 | |
| 35 | 100 | 6.3×7.7 |

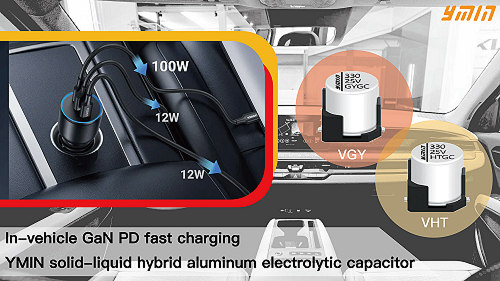

03 YMIN solid-liquid hybrid aluminum electrolytic capacitors help in-vehicle GaN PD fast charging
YMIN solid-liquid patch hybrid aluminum electrolytic capacitors have the characteristics of low ESR, high ripple resistance, large capacity, small size, wide temperature stability, etc., which perfectly solves the various needs of in-vehicle GaN PD fast charging and ensures safe and fast use.
Post time: Jul-17-2024
